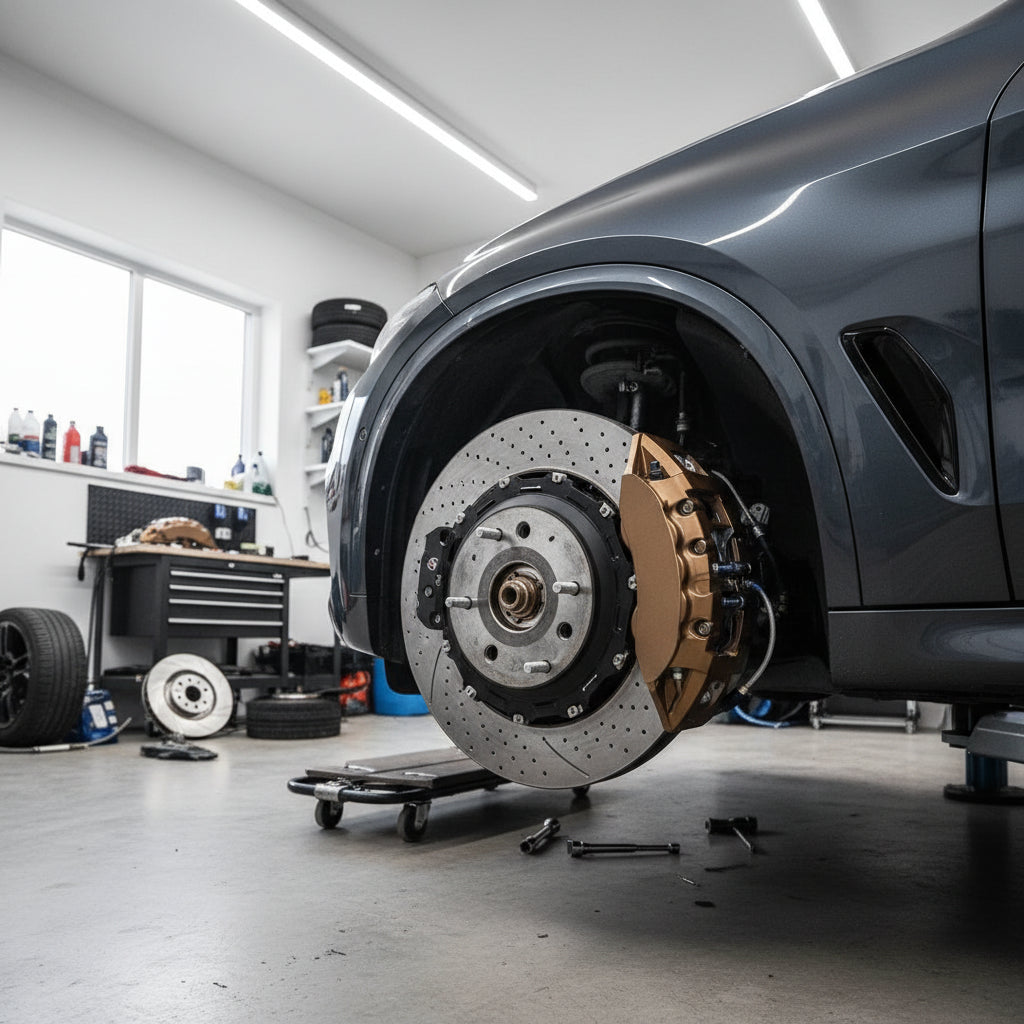

The BMW X5M is a heavyweight performance SUV that demands immense stopping power, often leading owners to look toward the Porsche Cayenne’s flagship braking hardware. The Akebono-sourced 10-piston caliper system, paired with 440mm carbon ceramic rotors, represents one of the most powerful braking setups ever fitted to a production SUV. While this retrofit is physically possible, it requires specific engineering solutions to bridge the gap between the Porsche and BMW chassis architectures.
Contents
- Key Context
- Structured Analysis
- Practical Checklist
- CTA
- FAQ
- Source Notes
- Professional Disclaimer
Key Context
The Porsche Cayenne (specifically the 9Y0/9Y3 Turbo S and Turbo GT models) utilizes an Akebono 10-piston front caliper designed to maximize pad surface area and thermal dissipation. This system is typically paired with 440mm Carbon Ceramic Brake (CCB) rotors.
The BMW X5M (F85 and F95 generations) features high-performance 6-piston setups from the factory, but for track use or high-speed autobahn driving, the 440mm Porsche system offers a significant increase in heat capacity and visual presence. However, because these systems were never intended to cross-pollinate, the adaptation focuses on three main hurdles: mounting geometry, rotor center-bell (hat) compatibility, and hydraulic volume.
Structured Analysis
1. Mounting and Bracket Engineering
The Porsche Akebono 10-piston caliper is a radial-mount design. To fit this onto a BMW X5M spindle, a custom-machined CNC adapter bracket is required. The bracket must account for the specific offset of the X5M hub and the massive radius of the 440mm rotor. Because the 10-piston caliper is significantly longer than the standard BMW 6-piston unit, the bracket must be made from high-tensile aerospace-grade aluminum or steel to manage the high torque loads generated during braking.
2. Rotor Hub and Bolt Pattern Discrepancies
The Porsche Cayenne typically uses a 5x130mm bolt pattern, whereas the BMW X5M uses either 5x120mm (F85 generation) or 5x112mm (F95 generation). You cannot simply "bolt on" an OEM Porsche 440mm rotor. The solution is usually a 2-piece rotor design where the 440mm carbon ceramic friction ring is mated to a custom-machined center hat specifically designed for the BMW hub bore and bolt pattern.
3. Wheel Clearance and Diameter
A 440mm rotor is exceptionally large. While some 21-inch wheels may clear the caliper, most enthusiasts find that 22-inch wheels are necessary to provide the required barrel clearance for the 10-piston Akebono housing. The profile of the spokes also matters; the 10-piston caliper is wide, meaning high-offset wheels might require spacers to avoid contact with the spokes.
4. Hydraulic System and Master Cylinder
Moving from a 6-piston to a 10-piston setup changes the total piston area. While Akebono designs these pistons to maintain a manageable fluid displacement, the BMW X5M master cylinder must be able to move enough fluid to provide a firm pedal. Generally, the BMW M master cylinders are robust enough to handle the transition, but the pedal stroke may feel slightly longer. Coding the ABS/DSC module to a "CCB" setting (if available via software like E-Sys) is recommended to optimize the pressure ramp-up.
5. Weight and Thermal Performance
The primary advantage of this adaptation is the reduction in unsprung mass if moving from iron rotors to carbon ceramics. A 440mm CCB rotor is significantly lighter than a standard BMW 395mm or 418mm iron rotor. This improves suspension response and steering feel. Furthermore, the 10-piston caliper increases the pad contact patch by approximately 40% compared to standard Porsche 6-piston units, providing superior bite and fade resistance.
Practical Checklist
- Verify Chassis: Identify if the BMW is an F85 (5x120) or F95 (5x112) to ensure the correct rotor hat dimensions.
- Wheel Fitment: Confirm the inner barrel diameter of your 21" or 22" wheels; 440mm rotors require approximately 480mm of internal clearance.
- Hardware Sourcing: Secure Akebono 10-piston calipers (often found on Cayenne Turbo GT or Audi RS6/RS7 models).
- Custom Brackets: Procure or commission radial-mount adapters specifically for the BMW M spindle.
- Custom Rotor Hats: Ensure the 440mm friction rings are mounted on hats with the correct BMW center bore (74.1mm for F85 or 66.6mm for F95).
- Brake Lines: Use custom stainless steel braided lines with the correct Porsche-end fitting for the caliper and BMW-end fitting for the hardline.
- Fluid: Use a high-boiling-point DOT 4 racing fluid to complement the high-thermal capacity of the system.
Recommended Next Step
Looking to plan the right brake package for owners comparing BMW and Porsche brake setups? Browse our carbon ceramic brake catalog to compare vehicle-specific carbon ceramic rotor and upgrade options.
FAQ
Can I use the Porsche 10-piston calipers with standard BMW iron rotors?
It is technically possible if you find a 440mm iron rotor, but such rotors are extremely heavy. Using carbon ceramic friction rings is the intended application for these calipers to keep unsprung weight manageable.
Do I need to change the rear brakes as well?
While not strictly necessary for safety, it is recommended to upgrade the rear pads or rotors to maintain a proper brake bias, especially since the 10-piston front setup significantly increases front-end bite.
Is this a "bolt-on" kit?
No. This is a custom adaptation. While some aftermarket companies sell "kits" containing these parts, it always involves non-OEM brackets and custom rotor hats.
Will my 20-inch winter wheels fit over 440mm rotors?
No. A 20-inch wheel will not clear the 440mm rotor and the 10-piston Akebono caliper. You will need at least a 21-inch or 22-inch wheel.
Explore fitment-focused options here: carbon ceramic brake catalog.
