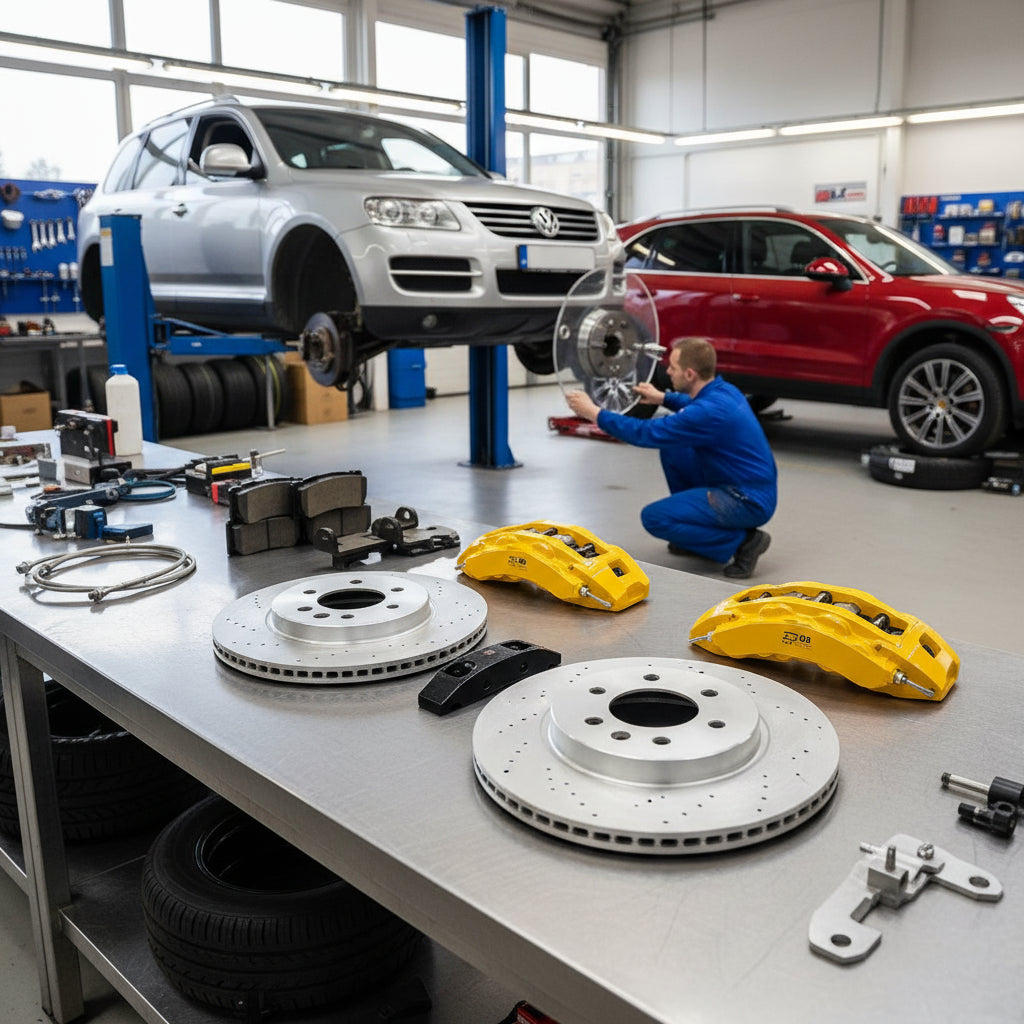

The shared engineering architecture between the Porsche Cayenne and the Volkswagen Touareg makes caliper swapping a frequent topic for enthusiasts. Utilizing the iconic yellow calipers from the Porsche Ceramic Composite Brake (PCCB) system is a popular way to build a custom Porsche Big Brake Kit for the Touareg. However, achieving a direct fit involves more than just bolting on the hardware; it requires careful coordination of rotor diameter, offset, and wheel clearance.
Contents
- Platform Synergy and Component Compatibility
- Caliper Mounting and Bolt Patterns
- Rotor Selection and Offset Challenges
- Wheel Clearance and Barrel Requirements
- Hydraulic System and Brake Bias
- Performance Brake Kits: Iron vs. Carbon Ceramic
- Practical Checklist
- CTA
- FAQ
- Source Notes
- Professional Disclaimer
Key Context
The Volkswagen Touareg, Porsche Cayenne, and Audi Q7 share several generations of the Volkswagen Group PL7x and MLB Evo platforms. Because these vehicles share chassis components, many suspension and braking parts are interchangeable or require only minor modifications. The "Yellow Caliper" specifically refers to the Porsche Ceramic Composite Brake (PCCB) package, which typically features larger piston counts and is designed for significantly larger rotors than standard iron systems.
Structured Analysis
1. Platform Generations and Direct Fitment
Fitment depends heavily on the generation of the vehicles involved. For example, components from a Cayenne (92A) are generally more compatible with a Touareg (7P) than with the older Touareg (7L). While the mounting holes on the steering knuckle often share the same spacing, the radial distance from the hub center varies based on whether the donor Porsche was equipped with 380mm, 390mm, 410mm, or 440mm rotors.
2. Caliper Mounting Specifications
Most modern Porsche Big Brake Kit calipers use a radial mount design. When moving yellow PCCB calipers to a Touareg, the installer must ensure the caliper's mounting "ears" align with the Touareg's knuckle. In many cases, the mounting is a direct bolt-on, but the height of the caliper will dictate exactly which rotor diameter must be used. You cannot easily use a 410mm caliper with a 350mm rotor, as the pads will not sweep the surface correctly.
3. Rotor Selection: The Critical Link
The yellow PCCB calipers are wider than standard calipers to accommodate the thickness of carbon ceramic rotors. If you are retrofitting these to a Touareg, you must decide between using OEM Porsche ceramic rotors or specialized performance brake kits with iron rotors. Note that Porsche and Volkswagen share the 5x130 bolt pattern on older generations, but newer MLB Evo platforms have transitioned to 5x112, which complicates cross-generation swapping.
4. Wheel Clearance and Sizing
Porsche PCCB systems are physically massive. If you install the 10-piston calipers found on newer Cayenne Turbo models, you will almost certainly require 21-inch or 22-inch wheels. Even the older 6-piston yellow calipers typically require a minimum of a 20-inch wheel to clear the outer diameter of the caliper. Spacers may also be necessary to clear the "face" of the caliper if the Touareg wheels have a conservative offset.
5. Brake Bias and Master Cylinder
The Touareg master cylinder is generally robust enough to handle the fluid displacement of Porsche performance brake calipers. However, moving from a 4-piston front setup to a 6-piston or 10-piston PCCB setup can alter the pedal travel and brake bias. It is essential to ensure the rear braking force remains balanced to prevent premature ABS intervention or vehicle instability during hard braking.
Practical Checklist
- Verify Chassis Generation: Confirm if both vehicles are on the 7L, 7P, or MLB Evo platform.
- Identify Caliper Source: Determine if the yellow calipers are from a 380mm, 410mm, or 440mm Porsche system.
- Check Bolt Pattern: Ensure the rotor and hub share the same PCD (e.g., 5x130 for 7P/92A or 5x112 for CR/PO536).
- Measure Rotor Offset: Verify that the rotor hat height centers the disc within the PCCB caliper.
- Wheel Test Fit: Check both barrel clearance (diameter) and spoke clearance (width).
- Brake Line Length: Porsche calipers may require different banjo bolt sizes or longer braided stainless lines compared to stock VW units.
Recommended Next Step
Looking to plan the right brake package for Porsche Cayenne? Browse our Big Brake Kit catalog to compare vehicle-specific rotor, caliper, and upgrade options.
FAQ
Can I use the yellow PCCB calipers with standard VW Touareg iron rotors?
Generally, no. Yellow PCCB calipers are designed for specific rotor thicknesses and diameters (often 36mm to 40mm thick). Standard Touareg iron rotors are usually thinner and smaller in diameter, which would lead to poor pad contact and potential piston over-extension.
Do I need to recode the ABS system after installing a Porsche Big Brake Kit?
While the hardware may bolt on, the Touareg’s ABS and Stability Control modules are calibrated for specific brake torques. Professional installers often recommend updating the braking software or "coding" the car to the Cayenne’s brake parameters if possible to maintain optimal safety system performance.
Is the Porsche 10-piston caliper a direct fit for the Touareg?
The 10-piston caliper from the newer Cayenne (PO536) can fit the newer Touareg (CR) knuckles, but it requires the matching 440mm rotors. This setup will not fit under most standard VW wheels and requires a 21-inch wheel minimum.
