Identifying genuine BMW M Carbon Ceramic Brakes (CCB) for the M5 F90 is critical for ensuring vehicle safety, performance, and resale value. Because these systems are high-value components, many aftermarket look-alikes or retrofits from other models exist. This guide details the specific identifiers that distinguish authentic factory hardware from alternatives.
Contents
- Key Context
- Structured Analysis
- Practical Checklist
- CTA
- FAQ
- Source Notes
- Professional Disclaimer
Key Context
The BMW M5 F90 offers the M Carbon Ceramic Brake system as a premium factory option, traditionally denoted by gold-painted multi-piston calipers. While the hardware is designed for the F90 chassis, the complexity of the secondary market means components are often sold individually or as kits. Distinguishing between a factory-installed system, a genuine BMW retrofit kit, and third-party or refurbished components requires a close inspection of laser-etched markings and physical architecture.
Structured Analysis
1. Caliper Color and Branding

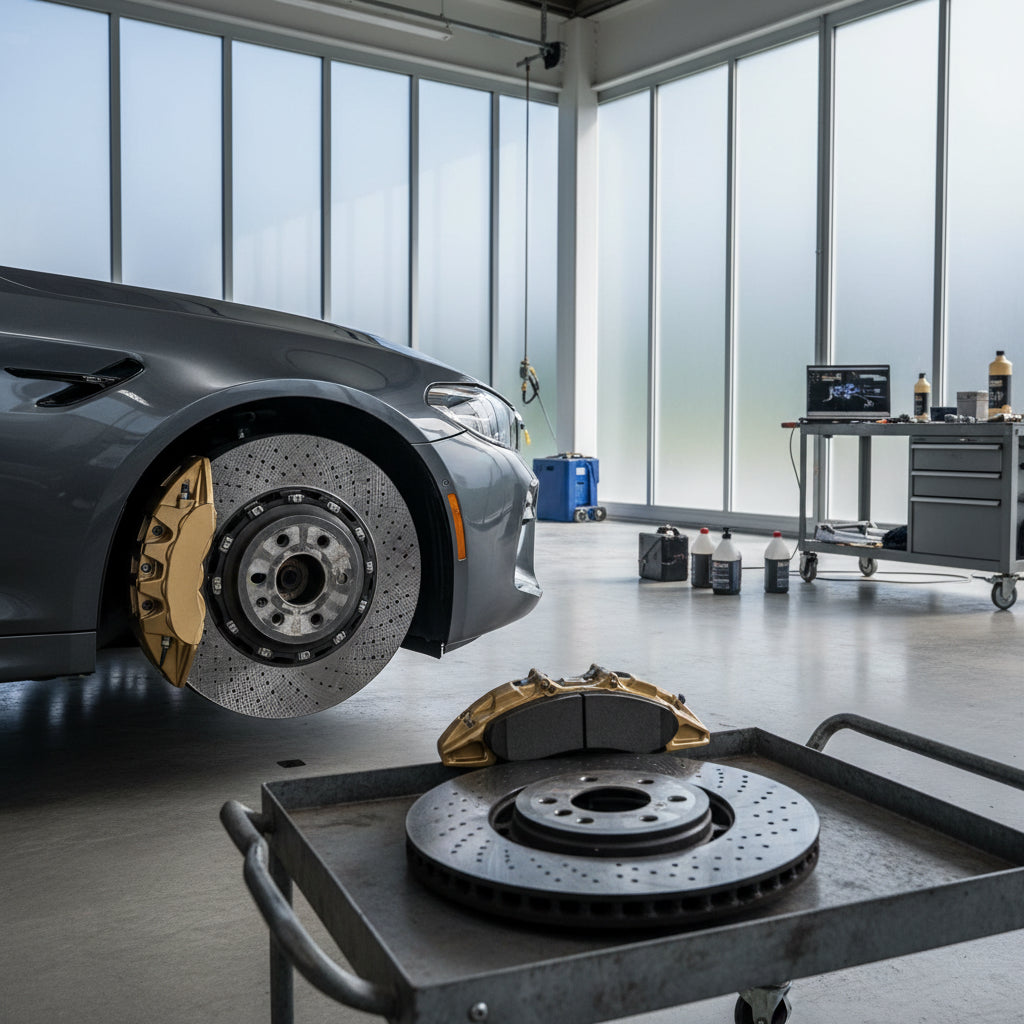

The most immediate visual indicator for the BMW M5 F90 is the caliper color. Genuine BMW CCBs for this platform utilize a specific shade of metallic gold. While blue calipers are standard for the steel-rotor M Compound brakes, the gold finish is reserved exclusively for the carbon-ceramic package. Ensure the "M" logo is correctly proportioned and integrated into the finish, rather than being a vinyl sticker or a low-quality repaint.
2. Rotor Surface and Texture
Authentic BMW OEM carbon ceramic rotors for the F90 feature a distinct "chaotic" fiber structure on the surface. Unlike steel rotors, they do not have a smooth, reflective metallic finish. Instead, they appear dark gray or black with a matte or semi-gloss crystalline pattern. Genuine rotors also feature specific wear indicators—small circular depressions in the rotor surface that become visible or change appearance as the material oxidizes over time.
3. Laser-Etched Part Numbers and Stamps
Every genuine BMW component is stamped with a unique part number. For the M5 F90, front rotors are typically 400mm x 38mm. You should look for the BMW logo and a 7-digit or 11-digit part number laser-etched onto the aluminum hub (the "hat") of the rotor. These markings often include minimum thickness (Min Th) specifications and weight data, which are essential for verifying the rotor has not worn past its service limit.
4. Retrofit vs. Factory Installation
If the brakes were added after the vehicle left the factory, they may still be "genuine" if sourced through a BMW retrofit kit. However, a genuine retrofit requires specific DSC (Dynamic Stability Control) coding to account for the different friction coefficients and heat dissipation of the ceramic material. A lack of proper software integration can be a sign that the kit was installed without following official BMW protocols, even if the hardware is authentic.
5. Market Value and Replacement Context
When verifying authenticity for the purpose of replacement, owners often compare OEM costs against high-quality alternatives. For reference, the BMW M5 F90 front rotors fall into the GT Spec category (380-405 mm).
* ForzaCCB GT Spec: Approximately $2,100 per matched pair ($1,050 per rotor).
* Estimated Delivery: DDP (Delivered Duty Paid) shipping can add approx. $150/rotor depending on the region and taxes.
* OEM Comparison: Factory BMW rotors sourced through a dealership network typically command a significantly higher premium due to the multi-step distribution chain and brand markup.
Practical Checklist
- Check Caliper Paint: Verify the gold finish is factory-smooth with no signs of overspray on the bleed nipples or bolts.
- Locate the BMW Logo: Look for the laser-etched BMW roundel or "BMW" text on the rotor hats and the back of the calipers.
- Verify Rotor Dimensions: Front rotors should measure 400mm; rears should be 380mm for the F90 M5.
- Inspect Wear Indicators: Ensure the three small circular wear indicators on the rotor face are present and not flush with the surface.
- Confirm Hardware: Genuine kits use specific mounting brackets and brake lines that differ from the standard M Compound steel brake setup.
Recommended Next Step
Looking to plan the right brake package for BMW M5? Browse our BMW Collection to compare vehicle-specific carbon ceramic rotor and upgrade options.
FAQ
What is the standard rotor size for the BMW M5 F90 Carbon Ceramic system?
The factory M Carbon Ceramic system for the F90 M5 utilizes 400mm x 38mm rotors at the front and 380mm x 28mm rotors at the rear.
Can I identify genuine rotors by their weight?
Yes. Carbon ceramic rotors are significantly lighter than their steel counterparts. A genuine F90 front rotor weighs roughly 50% less than the equivalent steel M Compound rotor. The specific weight is often etched onto the rotor hub for balance and tracking purposes.
Do all genuine BMW M5 CCBs have gold calipers?
For the F90 generation, gold is the standard designated color for the carbon ceramic option. While some owners custom-paint their calipers, a factory-original CCB set will always be gold.
Are there QR codes on genuine BMW brake parts?
Modern BMW OEM parts, including those for the F90 M5, often feature data matrix codes or QR codes on the hub or the back of the caliper to assist with inventory tracking and authenticity verification.
