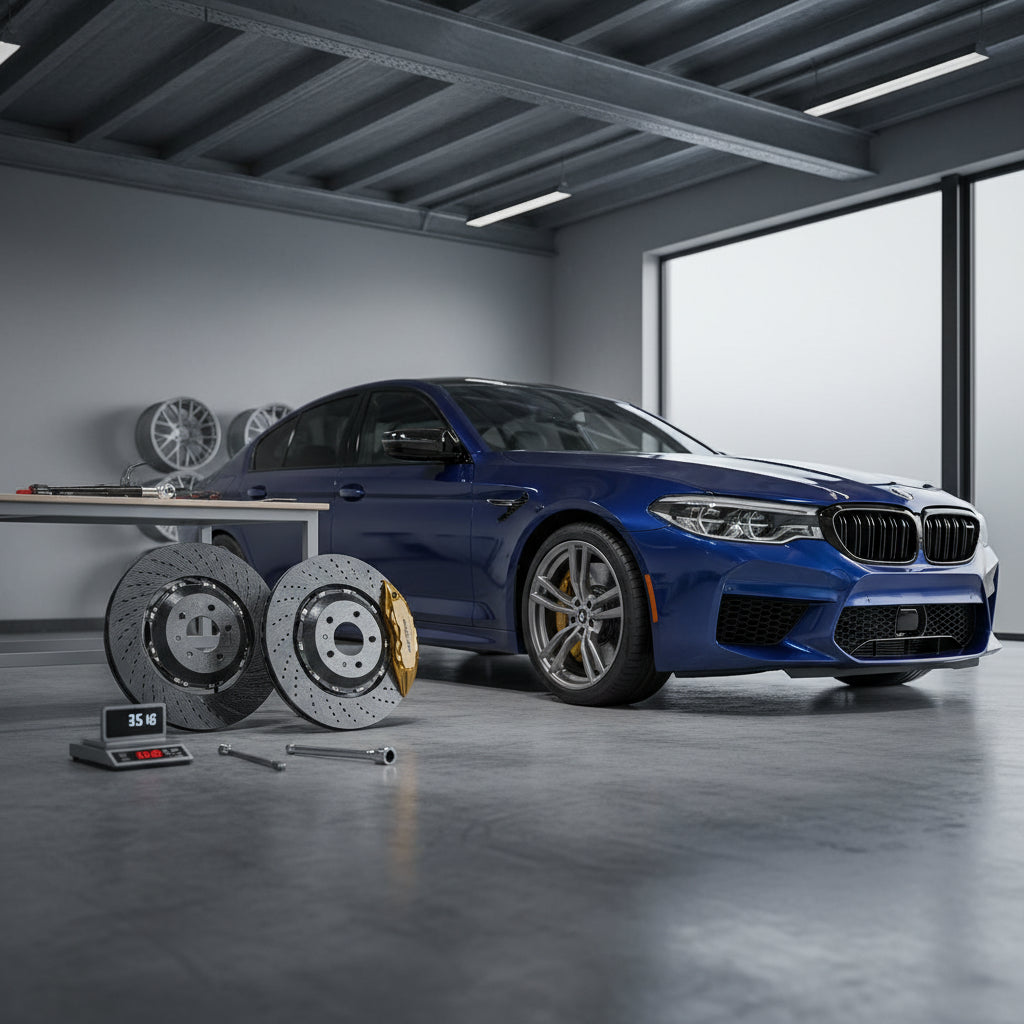

The BMW M5 (F90) is a high-performance sedan capable of generating over 600 horsepower, placing immense stress on the braking system during spirited driving or track sessions. While the standard iron brakes provide strong initial bite, they are susceptible to thermal fade and contribute significant unsprung weight to the chassis. Upgrading to a 400mm front and 380mm rear carbon ceramic rotor kit is a common solution for owners looking to maximize both stopping power and agility.
Contents
- Key Context
- Structured Analysis
- Practical Checklist
- CTA
- FAQ
- Source Notes
- Professional Disclaimer
Key Context
The BMW M5 (F90) typically comes equipped with one of two braking configurations from the factory. The standard "M Compound" system utilizes 395mm x 36mm front iron rotors paired with 6-piston fixed calipers, and 380mm x 28mm rear iron rotors with single-piston floating calipers.
Alternatively, the factory Carbon Ceramic Brake (CCB) option features 400mm front rotors. For owners of iron-equipped models, a rotor-only retrofit or a full system conversion allows for a reduction in rotating mass while maintaining the massive thermal capacity required for a vehicle weighing over 4,000 pounds.
Structured Analysis
1. Unsprung Weight Reduction and Handling
One of the most significant benefits of a 400mm/380mm carbon ceramic upgrade is the reduction in unsprung and rotating mass. Iron rotors of this size are exceptionally heavy; a 395mm front iron rotor can weigh approximately 36-38 lbs. In contrast, a carbon ceramic equivalent typically weighs 15-18 lbs. This reduction of nearly 50% per corner improves suspension response, steering feel, and acceleration, as the engine and suspension components have less inertia to overcome.
2. Thermal Management and Fade Resistance
The BMW M5 (F90) is known for its ability to reach high speeds quickly, which generates extreme heat during deceleration. Carbon ceramic rotors are designed to operate at temperatures that would cause iron rotors to warp or lose effectiveness (fade). A 400mm front rotor kit provides a larger surface area for heat dissipation, ensuring that braking performance remains consistent even after multiple high-speed stops.
3. Fitment and Diameter Considerations
Upgrading the front from 395mm (iron) to 400mm (CCB) usually requires specific consideration for the caliper positioning. While some aftermarket kits are designed to work with the original blue M-Compound calipers using spacers or specific offsets, a true CCB conversion often involves the gold-colored factory CCB calipers, which are sized specifically for the 400mm disc. It is essential to verify if the 400mm rotor kit includes the necessary hardware to maintain correct pad-to-rotor swept area.
4. Direct-Fit Reference Pricing
For owners considering this upgrade, pricing varies based on the distribution path and hardware scope. ForzaCCB provides direct-fit carbon ceramic rotors as a reference for performance value. For the BMW M5 (F90) sizes:
- GT Spec (380mm - 400mm): $2,100 per matched pair ($1,050 per rotor).
- Logistics: Estimated DDP (Delivered Duty Paid) shipping to major markets is approx. $150/rotor, though this varies by destination and local taxes.
When compared to full aftermarket systems that may retail for over $12,000, a rotor-specific upgrade offers a targeted way to gain CCB benefits using existing or OEM-spec hardware.
Practical Checklist
- Wheel Clearance: Ensure your wheels (minimum 19-inch, though 20-inch is preferred) provide sufficient clearance for the 400mm front rotors and large 6-piston calipers.
- Brake Pads: You must use pads specifically formulated for carbon ceramic surfaces. Using iron-specific pads will damage the carbon rotors.
- Coding: The vehicle’s DSC (Dynamic Stability Control) and ABS modules may need to be coded to the CCB brake map to account for the different friction coefficient and heat characteristics.
- Hardware Inspection: Check that the kit includes high-temperature mounting hats and bobbins (floating hardware) to allow for rotor expansion.
- Bedding Process: Follow the manufacturer’s specific bedding-in procedure to ensure a proper transfer layer of pad material onto the rotor surface.
Recommended Next Step
Looking to plan the right brake package for BMW M5? Browse our BMW Collection to compare vehicle-specific carbon ceramic rotor and upgrade options.
FAQ
Does the 400mm rotor kit fit under the stock 19-inch wheels?
Some 19-inch BMW wheels will clear the 400mm CCB setup, but it is extremely tight. Most owners and manufacturers recommend 20-inch wheels to ensure adequate clearance for the calipers and to prevent debris from getting trapped between the barrel and the caliper.
Can I use my original blue calipers with 400mm carbon rotors?
The original iron-spec (blue) calipers are designed for a 395mm rotor. To use 400mm rotors, you generally need a spacing kit for the caliper or a move to the factory CCB (gold) calipers which are cast for the larger radius.
Will this upgrade eliminate brake dust?
Yes, carbon ceramic rotors produce significantly less visible brake dust compared to traditional iron rotors and semi-metallic pads. This helps keep wheels cleaner for longer periods.
Is there a noise trade-off with carbon ceramics?
Carbon ceramic brakes can occasionally exhibit squealing at low speeds or when cold. This is a characteristic of the high-performance materials and does not indicate a defect.
Explore fitment-focused options here: BMW Collection.
Related reading for owners comparing similar setups: Addressing Brake Fade on the BMW M5 (F90) with Iron Brakes.
