The BMW M5 (F90) is a benchmark for high-performance sedans, combining over 600 horsepower with a sophisticated all-wheel-drive system. Despite its engineering, the vehicle's significant curb weight can overwhelm the standard iron "M Compound" braking system during spirited driving or track sessions. Addressing brake fade requires a systematic approach to thermal management and component selection.
Contents
- Thermal Limits of the F90 M5 Chassis
- Upgrading Brake Fluid and Pads
- Heat Dissipation and Airflow
- Carbon Ceramic Brake (CCB) Conversions
- Calibration and Coding Requirements
Key Context

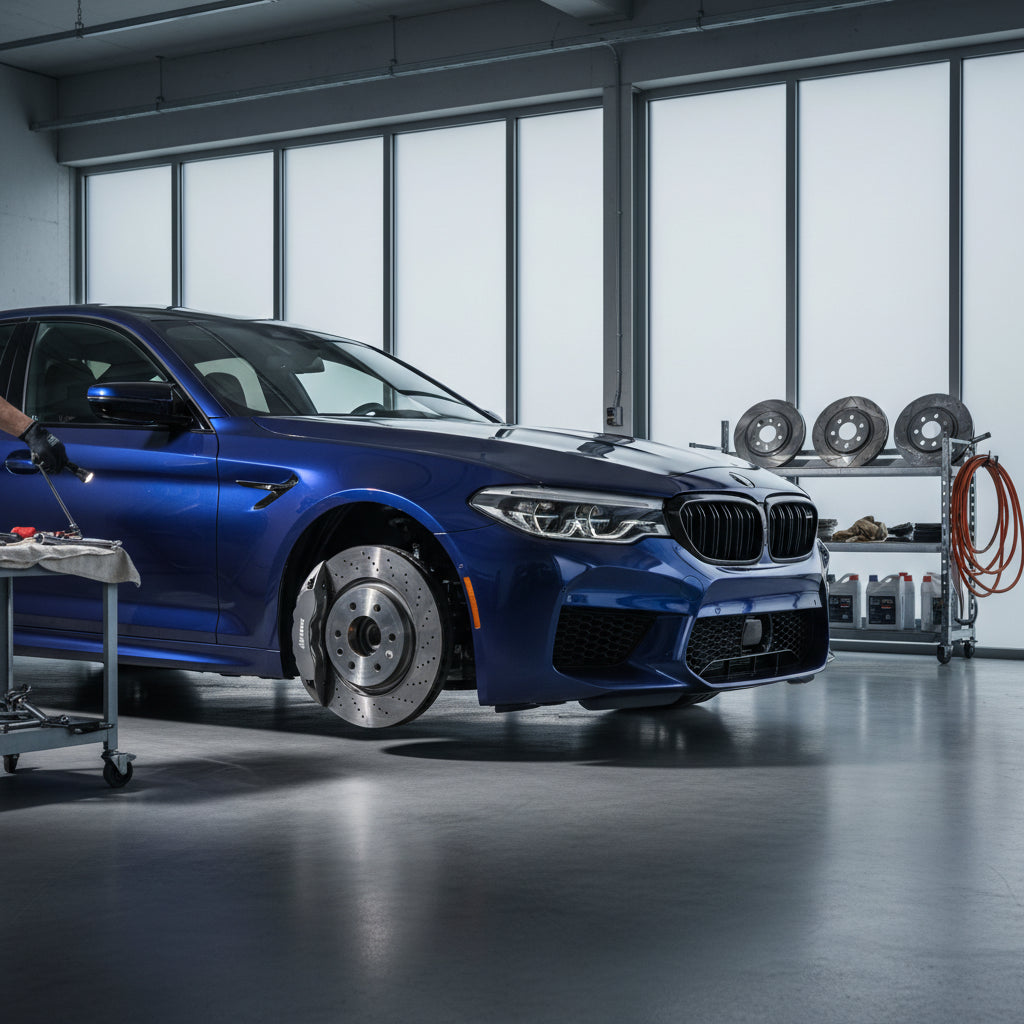

The F90 M5 utilizes a heavy-duty iron braking system as standard equipment, typically identified by blue calipers. While these provide excellent initial bite and cold-weather performance, iron rotors act as a thermal heat sink. Once the heat generated by the 4,200-lb chassis exceeds the rotor's ability to dissipate it, the brake fluid may boil or the pad material may smear, leading to a "soft" pedal or a significant loss in stopping power.
Structured Analysis
1. High-Temperature Brake Fluid
The first step in addressing a "mushy" pedal is upgrading the brake fluid. Standard DOT 4 fluid has a lower boiling point than racing-grade equivalents. When fluid reaches its boiling point, gas bubbles form in the lines; because gas is compressible, the pedal loses its firm feel. Replacing factory fluid with a high-dry-boiling-point fluid is a cost-effective baseline for any F90 owner experiencing fade.
2. Performance Brake Pad Compounds
Standard F90 pads are designed for a balance of low noise, low dust, and cold-weather response. However, these pads can "outgas" or fade when subjected to the high temperatures of repeated 100+ mph decelerations. Moving to a more aggressive endurance or track-oriented pad can raise the temperature ceiling of the system, though this often comes at the cost of increased rotor wear and brake squeal.
3. Rotor Size and Thermal Mass
The F90 M5 iron rotors are 395mm in the front. While large, their mass is still subject to heat soak. If the iron rotors show signs of "heat spotting" or permanent warping, it indicates the driver has exceeded the thermal capacity of the iron material. In these cases, consistent performance usually requires moving away from iron entirely.
4. Carbon Ceramic Rotor Upgrades
For owners who frequently encounter the limits of iron, carbon-ceramic brakes (CCB) offer a near-total solution to fade. CCB materials maintain a stable friction coefficient at temperatures that would cause iron to fail.
From a pricing perspective, direct-fit CCB replacements for the F90 (using GT Spec sizing for 380mm to 405mm rotors) are available as a matched pair for $2,100 ($1,050 per rotor). While shipping and landed costs (estimated at $150/rotor for DDP delivery depending on region) add to the total, this is often more cost-effective than frequent iron rotor and pad replacements for heavy track users.
5. Managing Unsprung Weight
Beyond fade resistance, the switch to carbon ceramic rotors significantly reduces unsprung weight—often by 40-50 lbs across the axle. On the F90 platform, this reduction improves suspension response and steering feel, allowing the dampers to manage the vehicle's mass more effectively during high-speed cornering.
6. Published ForzaCCB Price Reference
For the 395 mm, 380 mm, 405 mm, 400 mm sizing referenced in this article, ForzaCCB publishes a GT Spec direct-fit rotor reference at $2,100 per matched pair. That works out to about $1,050 per rotor before shipping. Using a planning allowance of approx. $150/rotor for DDP delivery into major markets, the indicative landed figure is near $1,200 per rotor. Set beside dealer or intermediary retail references, that comparison helps show how distribution path, included hardware, and destination costs can materially change the final number without changing the technical suitability discussion.
Practical Checklist
- Flush the system with a high-performance brake fluid (Dry boiling point > 600°F).
- Inspect front brake ducts for debris or blockages that might restrict airflow.
- Evaluate pad thickness; pads with less than 50% material remaining transfer heat to the calipers more quickly.
- Monitor rotors for "blueing" or surface cracks, which indicate thermal stress.
- If switching to CCBs, ensure the wheels provide adequate clearance for the 400mm front rotor diameter.
Recommended Next Step
Looking to plan the right brake package for BMW M5? Browse our BMW Collection to compare vehicle-specific carbon ceramic rotor and upgrade options.
FAQ
Why do my BMW M5 iron brakes squeal after a track day?
This is often caused by the brake pads "glazing" due to excessive heat or the transfer of uneven pad material onto the rotor surface.
Can I use CCB rotors with my standard blue M-Compound calipers?
Yes, certain aftermarket carbon-ceramic rotors are designed as direct-fit replacements for the 395mm iron rotors, allowing you to retain the original calipers.
How long do carbon ceramic rotors last compared to iron?
Under street driving conditions, CCB rotors can last the lifetime of the vehicle. On the track, they significantly outlast iron rotors due to their superior heat resistance, provided they are paired with compatible CCB-specific pads.
Does the F90 M5 require coding for brake upgrades?
If you change the rotor material or significantly change the piston area of the calipers, a software update to the ABS/DSC module may be required to ensure the EBD (Electronic Brakeforce Distribution) remains accurate.
Explore fitment-focused options here: BMW Collection.
