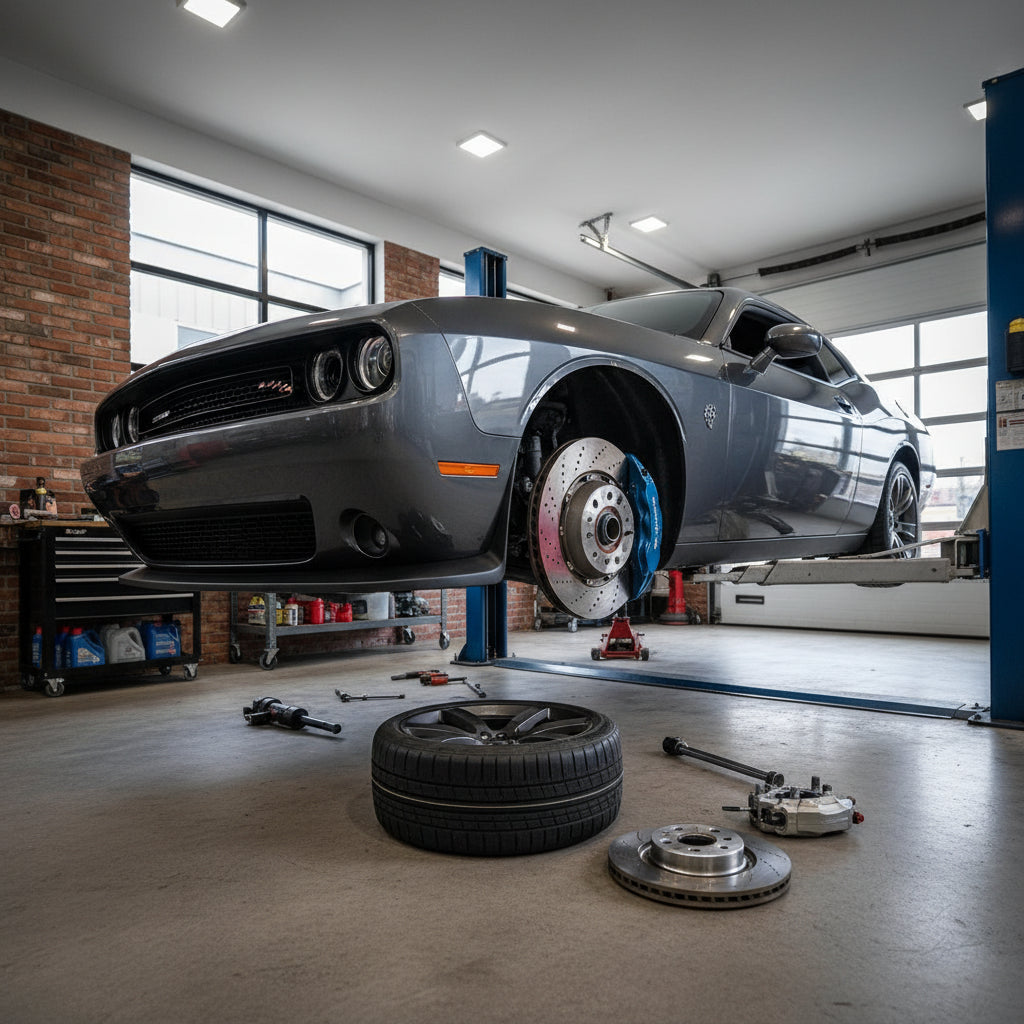

The prospect of retrofitting Audi Carbon Ceramic Brake (CCB) components onto a Dodge Challenger is a complex engineering task that moves beyond simple bolt-on modifications. While both vehicles occupy the high-performance segment, they utilize fundamentally different chassis architectures and mounting standards. Achieving a successful installation requires addressing significant discrepancies in bolt patterns, offsets, and hydraulic requirements.
Contents
- Key Context
- Structured Analysis
- Practical Checklist
- CTA
- FAQ
- Source Notes
- Professional Disclaimer
Key Context
The Dodge Challenger, particularly those on the LX or LD platforms, utilizes a braking system designed for heavy-duty thermal management, often featuring large Brembo-sourced steel components in SRT and Hellcat trims. Audi performance models, such as the R8 or RS series, frequently utilize SGL-produced carbon ceramic rotors and Brembo calipers tailored to the Volkswagen Group’s mounting standards.
Fitting an Audi CCB kit to a Dodge Challenger is not a "plug-and-play" scenario. The primary hurdles include the wheel bolt pattern—Audi typically uses 5x112mm, while the Dodge Challenger uses 5x115mm—and the physical mounting points on the steering knuckle.
Structured Analysis
1. Hub and Rotor Compatibility
The most immediate obstacle is the rotor hat (the center bell). Audi rotors are machined for a 5x112mm bolt circle and a specific center bore, which is significantly smaller than the Dodge Challenger's 71.5mm hub pilot. To make an Audi CCB rotor work on a Dodge hub, a custom-machined aluminum rotor hat must be fabricated. This hat must maintain the correct offset to ensure the rotor remains centered within the caliper.
2. Caliper Mounting and Radial Brackets
Audi CCB calipers are generally radial-mount, but the spacing between the mounting lugs and the distance from the spindle center differ from the Dodge knuckle design. Installation requires custom-milled 7075-T6 aluminum adapter brackets. These brackets must be precision-engineered to handle the extreme torque loads generated by carbon ceramic friction levels without flexing or vibrating.
3. Hydraulic Volume and Master Cylinder Balance
The master cylinder in a Dodge Challenger is calibrated for the piston area of its factory calipers. If the Audi calipers have a significantly larger total piston area, it may result in a "long" or "mushy" brake pedal. Conversely, if the piston area is too small, the pedal may feel excessively stiff with reduced modulation. Verification of the hydraulic ratio is essential to ensure the ABS and Electronic Stability Control (ESC) systems function within their intended parameters.
4. Wheel Clearance and Offset
Audi CCB rotors, often ranging from 380mm to 420mm, require substantial internal wheel clearance. While many Dodge Challenger models come with 20-inch wheels, the internal barrel shape and spoke clearance must be checked against the specific profile of the Audi caliper. Spacers may be required, though they can alter the vehicle's scrub radius and handling characteristics.
Practical Checklist
- Measure the Dodge Challenger hub pilot diameter (standard is 71.5mm) and verify it against the Audi rotor hat.
- Confirm the Audi caliper piston diameters to calculate the total hydraulic displacement.
- Source or commission custom 5x115mm rotor hats compatible with the Audi ceramic rings.
- Design and CNC-machine caliper adapter brackets based on the Challenger knuckle dimensions.
- Verify that the existing brake lines use compatible thread pitches or source custom braided stainless steel lines.
- Ensure the wheels provide a minimum of 3-5mm clearance from the caliper at all points.
Recommended Next Step
Looking to plan the right brake package for Audi? Browse our Audi Collection to compare vehicle-specific carbon ceramic rotor and upgrade options.
FAQ
Can I use the Audi brake pads on the Dodge Challenger rotors?
No, the pads must match the caliper. If you are using Audi calipers, you must use Audi-compatible CCB pads. These pads are specifically formulated for the silicon carbide surface of the ceramic rotor.
Will the Dodge Challenger ABS system work with Audi CCBs?
The ABS system will function, but the intervention thresholds may be slightly off because carbon ceramic brakes have a different friction coefficient and heat profile than steel. Professional tuning of the brake control module is recommended.
Is it cheaper to use used Audi parts than a new Dodge-specific kit?
While used Audi parts may seem cheaper initially, the cost of custom machining hats, brackets, and purchasing new ceramic-specific pads often brings the total cost close to a purpose-built aftermarket CCB kit.
Do Audi CCBs squeal more than Dodge steel brakes?
Carbon ceramic brakes are known for low-speed squeal, especially when cold. This is a characteristic of the material and is common regardless of whether the kit is OEM Dodge or a retrofit from an Audi.
