You cannot reliably assess disc life using conventional calipers because carbon ceramic discs do not wear down by losing surface thickness like iron discs. Instead, high-performance ceramic composites degrade primarily through internal matrix oxidation, pyrolytic carbon core burn-off, and micro-spalling under thermal stress. Accurate carbon ceramic rotor wear measurement requires either precision mass weighing on a calibrated scale after demounting or non-destructive testing using a pulse-induction tool like Carboteq.
Contents
- 01Why Traditional Caliper Thickness Readings Are Inconclusive
- 02The Demount and Precision Weighing Method
- 03Pulse-Induction Testing With Handheld Carboteq Tools
- 04Visual Wear Indicators and Surface Degradation Mapping
- 05Evaluating Replacement Paths and Upgrades
Key Context
On traditional cast-iron brake systems, mechanical friction abrades the metal faces, generating a pronounced outer lip edge and a measurable drop in disc thickness. Technicians routinely grab a vernier caliper or outside micrometer, measure the remaining disc thickness against the stamped minimum thickness (Min Th), and determine serviceability within seconds. When owners apply this same mindset to carbon-silicon carbide (C/SiC) or carbon ceramic matrix (CCM) discs, they often mistake a rotor with zero physical lip as being brand new.
Carbon ceramic friction rings operate under entirely different tribological principles. When paired with proper ceramic-formulated pads, the transfer layer protects the outer silicon carbide surface from heavy mechanical shaving, meaning a disc near its retirement limit may only lose 0.1 to 0.2 mm of physical thickness. The actual deterioration occurs beneath the friction face, where prolonged exposure to extreme temperatures causes microscopic carbon fibers to oxidize into carbon dioxide gas, leaving the core structural matrix lighter, less dense, and thermally weakened.
Because structural hollows develop internally while the outer ceramic shell retains its original profile, relying exclusively on caliper thickness will conceal dangerous structural degradation. Knowing when and how to deploy calibrated bench scales, optical surface inspections, or surface-contact inductive meters is essential to protecting both your investment and your track safety.
Step-by-Step Methods for Evaluating Carbon Ceramic Rotor Condition
Why Traditional Caliper Thickness Readings Are Inconclusive
A standard digital vernier caliper or pointed anvil micrometer measures the distance between the two outer working faces of the brake disc. While cast-iron rotors wear down by several millimeters across their operational lifespan, carbon ceramic rotor thickness rarely decreases by more than a fraction of a millimeter over tens of thousands of street miles or heavy track sessions.
Even when track abuse generates severe micro-voids and carbon burnout inside the core, the hardened silicon carbide surface often remains dimensionally intact. Consequently, a disc that measures well above its minimum stamped thickness can suffer from catastrophic structural compromise and diminished heat capacity.
Thickness measurements do serve one narrow diagnostic purpose: identifying localized physical gouging or groove scoring caused by foreign road debris or severely degraded brake pads. Beyond catching mechanical surface gouges, calipers cannot confirm remaining operational life.
- Silicon carbide friction layers resist direct abrasive thinning from pad contact.
- A disc at end-of-life may show less than 0.2 mm of total thickness loss.
- Calipers completely overlook internal core density loss and oxidation voids.
The Demount and Precision Weighing Method
The universal mechanical standard established by original equipment brake manufacturers for assessing carbon ceramic degradation is gravimetric mass measurement. Every authentic carbon ceramic rotor features a minimum operational weight (Min Wt) laser-etched onto the aluminum center bell or the outer disc edge, expressed in grams.
To perform an accurate gravimetric check, the brake disc must be completely removed from the wheel hub. Any road grime, brake dust, hub corrosion, and anti-seize compound accumulated inside the ventilation vanes or mounting hat must be thoroughly cleaned with solvent and dried before weighing.
Technicians must use an industrial-grade digital bench scale calibrated to single-gram increments. If the rotor weighs equal to or less than the stamped minimum weight, the disc has lost its necessary carbon density to absorb and dissipate heat safely, mandating immediate replacement.
- Rotor must be demounted from the vehicle hub to isolate disc mass from suspension drag.
- Clean all loose debris from internal cooling channels using compressed air and degreaser.
- Compare the final clean gram weight against the stamped Min Wt threshold on the hat.
Pulse-Induction Testing With Handheld Carboteq Tools

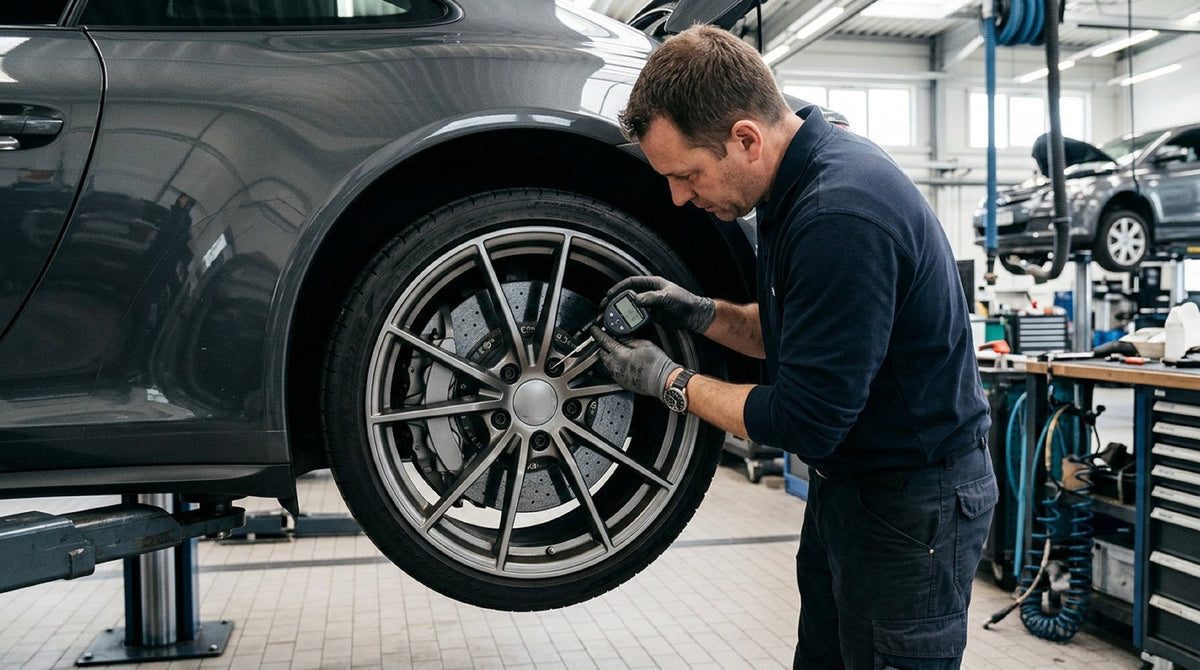

To bypass the labor-intensive process of unbolting discs, manufacturers partnered with instrumentation specialists to develop pulse-induction tools such as the Proceq Carboteq instrument. This handheld sensor evaluates the internal electrical conductivity of the disc matrix without dismantling the wheel assembly.
The instrument utilizes inductive coils to transmit low-frequency magnetic pulses deep into the composite core. Because intact carbon fibers conduct electrical currents while oxidized air pockets do not, the returning inductive response directly reflects the density and structural integrity of the internal carbon fiber weave.
The device reads the laser-etched baseline Carboteq (CQ) reference values stamped on the disc hat and compares them against current readings taken across three distinct points around the swept face. A digital readout immediately indicates whether the rotor retains sufficient composite density or has reached replacement limits.
- Enables rapid on-vehicle inspections through wheel spokes in paddock or shop environments.
- Measures relative carbon fiber conductivity rather than physical outer dimensions.
- Requires checking against the specific pre-engraved baseline CQ value for that rotor.
Visual Wear Indicators and Surface Degradation Mapping
Beyond electronic testing and mass measurement, physical inspection of the disc face provides critical context regarding thermal stress. Many modern OEM carbon ceramic discs feature small round or triangular surface wear indicators embedded within the friction layer during the manufacturing process.
These indicator spots alter color, darken, or become recessed as the surrounding friction layer undergoes oxidation and microscopic flake loss. When the indicator pockets burn down or erode flush with the surrounding ceramic bed, the rotor has reached its thermal boundary.
Technicians also look for surface spalling, where chunks of the smooth ceramic glaze peel away, exposing bare, rough carbon fibers underneath. Rough, pitted patches exceeding manufacturer area limits indicate advanced oxidation, regardless of what a scale or caliper indicates.
- Inspect integrated circular indicator spots for darkening, recessing, or material loss.
- Examine the swept path for rough, fibrous spalling patches where the top glaze has sheared.
- Check rotor outer edges for handling chips or impact damage from careless wheel changes.
Evaluating Replacement Paths and Upgrades
When inspection confirms that a disc has reached its minimum weight or exceeded oxidation limits, vehicle owners face steep dealer replacement quotes that frequently range between three thousand and five thousand dollars per corner. Sourcing direct-replacement hardware from an independent specialist substantially reduces this operational overhead.
As a fitment-focused direct supplier, ForzaCCB provides direct-fit replacement carbon ceramic discs engineered to meet or exceed OEM dimensional tolerances and thermal capabilities. Matched pairs run approximately $1,950 for Street Spec (up to 370 mm), $2,100 for GT Spec (380 to 405 mm), and $2,350 for Track Spec (410 to 440 mm), with international delivery allowances typically adding around $150 per rotor depending on final destination.
Whether you maintain an exotic sports coupe or track-prepped sedan, separating physical thickness from core structural integrity ensures you never discard a serviceable disc prematurely or risk track failure on a burned-out core.
- OEM dealership rotor replacements often carry steep middleman markups.
- Direct-fit aftermarket carbon ceramic friction rings mount directly to existing bells.
- Confirm rotor diameter, hat offset, and operating temperatures before choosing disc specs.
Practical Checklist
- Verify whether the rotor hub features laser-engraved minimum weight or Carboteq CQ values.
- Do not rely on digital caliper thickness readings to determine remaining composite service life.
- Demount the rotor and clean all internal cooling vanes thoroughly before placing it on a scale.
- Use a bench scale with single-gram accuracy calibrated against certified test weights.
- Check three equidistant zones on the friction surface if using a pulse-induction Carboteq tester.
- Inspect the swept track under strong lighting for spalling, fiber breakout, or chipped edges.
- Examine embedded circular wear indicator spots for color shifts or surface erosion.
- Replace rotors immediately if measured weight drops below the stamped Min Wt threshold.
Recommended Next Step
If your carbon ceramic rotors are approaching their minimum weight or show signs of thermal oxidation, contact ForzaCCB to discuss precision-engineered direct-fit replacement discs tailored to your vehicle.
Browse the carbon ceramic brake catalogFAQ
Can I use an outside micrometer to check if my carbon ceramic rotors are worn out?
An outside micrometer will only tell you if the rotor has physical surface gouges, not whether the composite matrix is worn out. Carbon ceramic rotors lose mass through high-temperature oxidation of the internal carbon fibers while maintaining their outer physical thickness. To determine if the rotor is safe for continued use, you must weigh the rotor on a gram scale or scan it with a pulse-induction meter.
Why does a carbon ceramic rotor lose weight if the thickness does not change?
At track temperatures exceeding 600 degrees Celsius, oxygen penetrates the microscopic pores of the friction ring and reacts with internal carbon fibers. This reaction converts the carbon into carbon dioxide gas, which escapes through the cooling vents. The internal core becomes porous and lighter over time, reducing structural strength even though the outer ceramic face remains dimensionally unchanged.
How clean does a rotor need to be before weighing it on a scale?
The rotor must be exceptionally clean because allowable wear margins between new condition and retirement weight are often only 60 to 100 grams total. Accumulations of brake dust, rubber marbles, and hub corrosion inside the internal cooling channels can easily add 30 to 50 grams of false mass. Use a non-chlorinated brake cleaner, a soft nylon brush, and compressed air to purge all internal passages before weighing.
What is the acceptable tolerance for surface spalling on a carbon ceramic disc?
Most manufacturers permit small superficial micro-cracks from thermal expansion, but active spalling—where the ceramic surface layer flakes off to expose raw composite weave—is tightly restricted. Typically, individual spalled pockets cannot exceed 1 to 2 square centimeters, and the total spalled area must not cover more than 10 to 20 percent of the swept braking track. Any deep delamination across cooling holes requires immediate disc replacement.
Can a standard automotive repair shop measure carbon ceramic rotor wear accurately?
A standard shop can measure wear accurately only if they possess a high-precision digital gram scale and take the time to remove and clean the rotors, or if they own a dedicated pulse-induction tool like Carboteq. If a service technician attempts to inspect your carbon ceramic discs simply by sliding a vernier caliper through the wheel spokes, they are applying iron rotor protocols that yield meaningless results for composite discs.
