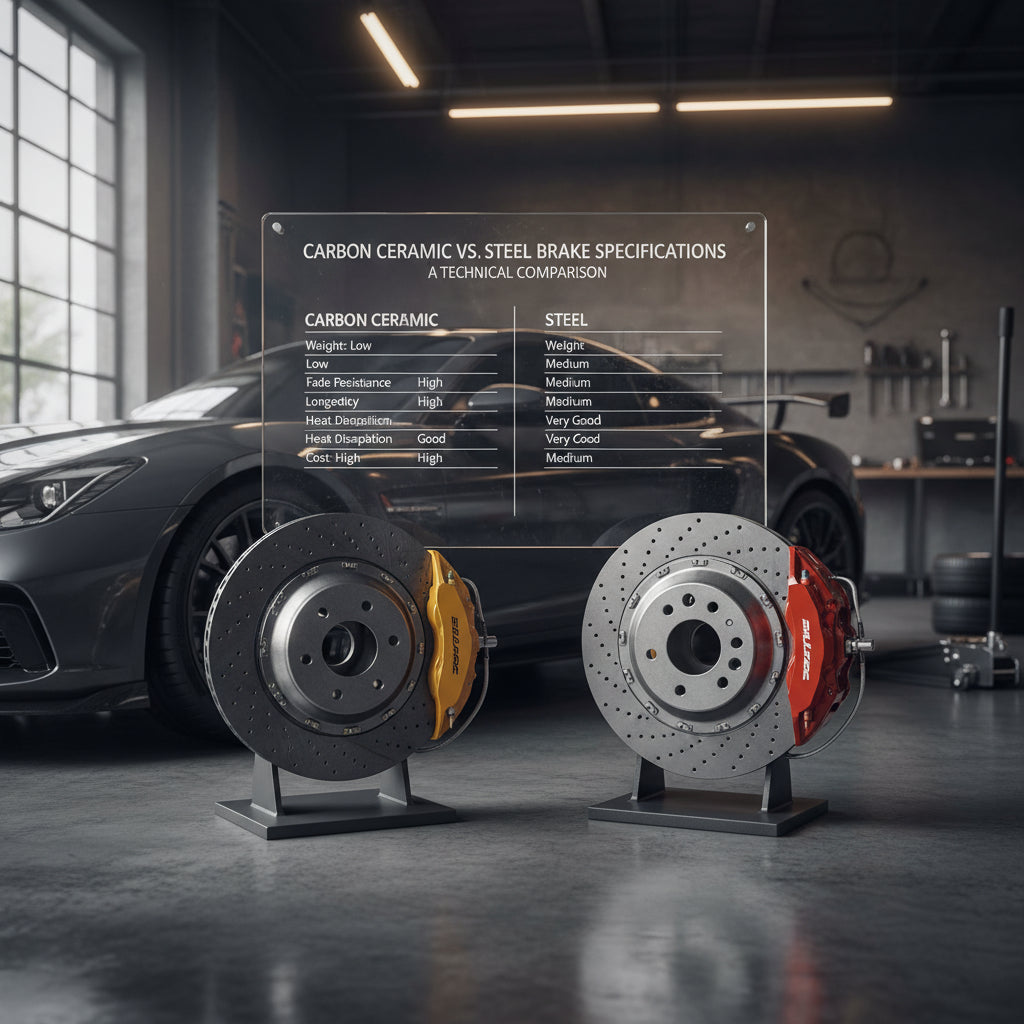

The choice between carbon ceramic and steel braking systems often defines the performance limits of high-end vehicles. While steel has remained the industry standard for decades, carbon ceramic technology offers a specific set of physical and thermal properties designed for extreme environments. Understanding these technical specifications is essential for drivers and engineers evaluating braking efficiency and vehicle dynamics.
Contents
- Key Context
- Structured Analysis
- Practical Checklist
- FAQ
- Source Notes
- Professional Disclaimer
Key Context
Steel braking systems utilize cast iron or steel alloy rotors, favored for their reliability and cost-effectiveness in daily driving. Carbon ceramic brakes (CCB) are manufactured from a composite of carbon fiber and silicon carbide. These materials differ fundamentally in how they manage kinetic energy, heat dissipation, and mass, leading to vastly different operational envelopes.
Structured Analysis
1. Thermal Resilience and Operating Ranges
Steel rotors typically operate efficiently at lower temperatures but are prone to thermal deformation when pushed beyond their limits. Standard steel brakes may experience "fade"—a loss of stopping power—once they reach temperatures between 400°C and 500°C.
In contrast, carbon ceramic brakes are engineered to thrive in high-heat scenarios. They maintain structural integrity and friction coefficients at temperatures exceeding 800°C, and in some track applications, can withstand bursts up to 1,000°C. This high thermal ceiling ensures consistent performance during repetitive, heavy braking.
2. Weight and Unsprung Mass
One of the most significant specifications of carbon ceramic brakes is their density. A CCB rotor is approximately 50% lighter than an equivalent steel rotor. This reduction directly affects "unsprung mass," which is the weight of components not supported by the vehicle's suspension.
Lower unsprung mass allows the suspension to react faster to road imperfections, improving traction and steering precision. Reducing rotating mass also requires less energy to accelerate and decelerate the wheel assembly, marginally improving overall vehicle efficiency.
3. Friction Coefficient and Surface Texture
The surface of a steel rotor is smooth and relies on a transfer layer of pad material to create friction. While effective, this process generates significant brake dust and wears down the rotor surface over time.
Carbon ceramic rotors feature a extremely hard, textured surface that is highly resistant to abrasion. While they may require a brief warm-up period to reach their optimal friction coefficient, they provide a very high level of "bite" once at operating temperature. They also produce significantly less visible brake dust compared to traditional iron-based systems.
4. Component Thickness and Dimensions
To manage the stresses of performance driving, carbon ceramic rotors are often physically thicker than their steel counterparts. This increased volume provides a larger surface area for heat dissipation without the weight penalty of a thicker steel disc. Consequently, converting from steel to CCBs (or vice versa) often requires specific caliper spacers or entirely different caliper housings to accommodate the change in disc thickness.
5. Durability and Lifecycle Metrics
The lifecycle of a steel rotor is measured by its thickness; once it wears below a specific millimeter threshold, it must be replaced. Carbon ceramic rotors, however, do not usually wear down in thickness. Instead, they lose mass through a process called oxidation when subjected to high temperatures. Technicians use dedicated tools to measure the density of the ceramic material or weigh the rotor to determine its remaining service life.
Practical Checklist
- Weight Check: Expect a 40% to 50% weight reduction per corner with carbon ceramic systems.
- Heat Check: CCBs are required for sustained track use where temperatures regularly exceed 500°C.
- Noise Tolerance: Be aware that CCB specifications often result in increased squealing at low speeds compared to steel.
- Cost Factor: Factor in that CCB replacement costs can be ten times higher than steel.
- Cleaning: Use only pH-neutral cleaners, as some harsh chemicals can damage the resin in carbon ceramic discs.
FAQ
Are carbon ceramic brakes larger in diameter than steel brakes?
Not necessarily. While they are often larger on high-performance models to maximize leverage and cooling, they can be sized identically to steel rotors depending on the vehicle's wheel clearance.
Do carbon ceramic brakes stop a car faster than steel?
In a single emergency stop from 60 mph, the difference is negligible as both systems can easily engage the ABS. The advantage of CCBs appears during repeated stops where steel would suffer from heat fade.
Why do steel brakes perform better in the cold?
Steel rotors reach their optimal friction temperature almost instantly. Carbon ceramic materials may have a lower initial "cold bite," requiring a few moments of use to reach the temperature needed for maximum effectiveness.
Can you resurface a carbon ceramic rotor like a steel one?
No. Steel rotors can often be "turned" or resurfaced to remove irregularities. Carbon ceramic rotors cannot be resurfaced and must be replaced or professionally refurbished by specialists if the surface is damaged.
