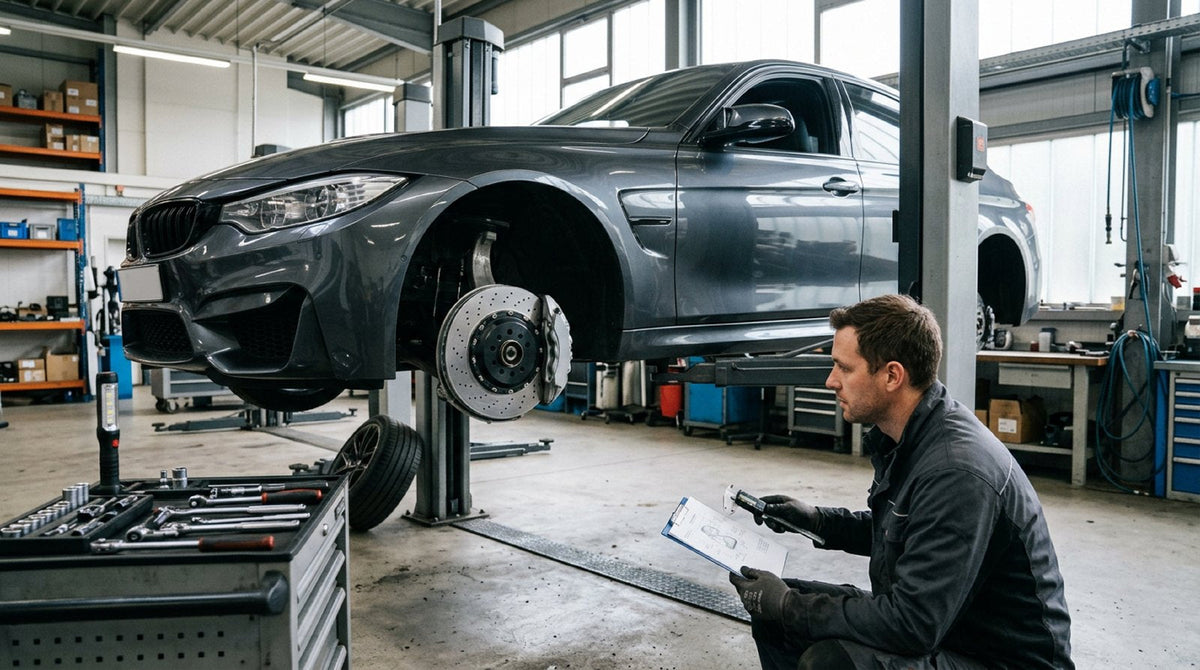

To confirm a big brake kit fits your BMW using its VIN, decode the 17-digit chassis number through BMW parts catalogs to identify your exact factory brake option codes, knuckle part numbers, and hub dimensions. This VIN breakdown reveals whether your car has base single-piston anchors or optional factory sport packages, determining the caliper mounting lug spacing and rear parking brake configuration. Once your factory build baseline is verified, you match rotor diameters, caliper offsets, and wheel barrel clearances against manufacturer templates before ordering.
Contents
- 01Decode Factory BMW Brake Option Codes from Your VIN
- 02Identify Upright Spindle Geometry and Caliper Mounting Lugs
- 03Verify Rear Parking Brake Mechanism and Drum Diameter
- 04Calculate Hydraulic Master Cylinder Volume and Brake Bias
- 05Check Wheel Barrel Profile and Spoke Clearance Templates
- 06Choose Rotor Metallurgy and Caliper Configurations
Key Context
BMW chassis architecture across generations like the E90, F30, G20, and their M variants incorporates subtle mid-cycle revisions that make general model-year matching unreliable. For example, an F30 328i and 335i may look identical externally, but factory equipment variations mean rotor sizes ranging from 312 mm up to 370 mm or 380 mm M Performance packages were fitted depending on package codes such as S2NHA or P337A. Furthermore, differences in rear emergency brake drum diameters (160 mm versus 185 mm internal shoes) or electronic parking brake calipers mean that bolt-on compatibility requires factory build validation.
When transitioning to high-performance iron or carbon ceramic setups, small mechanical mismatches cause serious issues. Caliper axial bracket offsets, rotor hat offsets, hub pilot diameters (such as the standard 72.56 mm or newer G-series 66.5 mm hubs), and wheel spoke clearances cannot be guessed. Supplying your full 17-digit VIN gives suppliers the exact chassis specification needed to guarantee that calipers, mounting brackets, rotor bells, and brake lines bolt directly to your factory suspension uprights without modification.
Direct suppliers like ForzaCCB use VIN verification to cross-reference BMW dealer ETK databases before cutting custom rotor hats or assembling radial mounting brackets. Whether you are upgrading an F-chassis daily driver, a G80 M3, or transitioning from cast iron to carbon ceramic rotors, understanding what your VIN exposes ensures your brake upgrade delivers factory-level alignment and uncompromised hydraulic balance.
Step-by-Step BMW Brake Verification by Chassis Identification
Decode Factory BMW Brake Option Codes from Your VIN
Your Vehicle Identification Number serves as the digital fingerprint of your BMW, indexing the exact manufacturing run at the assembly plant. A standard BMW VIN decoder or factory ETK database reads specific option codes that define the installed braking hardware. Codes like S2NHA (M Sport Brakes), S249A, or model-specific M packages dictate whether your car left Munich with 312 mm, 340 mm, or 370 mm front iron discs.
Without decoding the VIN, assuming brake specs based on engine badges often leads to incorrect bracket orders. A 328i equipped with the factory M Sport package utilizes different front knuckles and rotor diameters than an unoptioned base 328i. By retrieving your complete production sheet, suppliers isolate the exact part numbers of your front and rear carrier hubs to determine which caliper bracket spacing is required.
- Locate the 17-digit VIN on your driver-side door jamb, lower windshield corner, or vehicle registration document.
- Enter the chassis number into a dedicated BMW parts catalog to pull all production options.
- Check specifically for option codes like S2NHA, S337A, or factory Carbon Ceramic Brake (CCB) options such as S2NKA.
- Record the factory front and rear rotor dimensions specified under your vehicle's build date.
Identify Upright Spindle Geometry and Caliper Mounting Lugs
BMW employs both axial and radial caliper mounting designs, with significant variations across platform generations. On standard series cars, the front steering knuckle (upright) features threaded axial ears with specific center-to-center bolt hole spacing. If a kit is engineered for an M Sport 370 mm knuckle, installing it on a standard 312 mm knuckle results in misaligned caliper radial placement and uneven pad sweep across the rotor face.
Using your VIN allows suppliers to pinpoint the exact casting number of your suspension upright. This step prevents the costly mistake of receiving radial caliper adapters with improper radial offset or bolt spacing. Even between siblings on the same platform, such as an F30 3-series sedan and an F80 M3, the knuckles differ entirely in strut clamping diameter, ball joint taper, and brake mounting lug geometry.
- Match the VIN-derived knuckle part number against the supplier's mounting bracket application chart.
- Verify axial bolt hole center-to-center distances, which typically measure between 122 mm and 140 mm depending on chassis.
- Confirm whether your upright requires M12 or M14 caliper bracket mounting bolts.
- Inspect front hub offset relative to the knuckle face to guarantee centered rotor alignment within the caliper channel.
Verify Rear Parking Brake Mechanism and Drum Diameter
Rear brake compatibility is one of the most common stumbling blocks on BMW brake retrofits. Older chassis and several F-series vehicles rely on a internal drum-in-hat mechanical emergency brake shoes housed inside the inner bell of the rear rotor. For example, BMW utilizes two primary handbrake drum diameters: 160 mm for smaller-displacement models and 185 mm for high-output models, six-cylinder variants, and M cars.
If you select a rear big brake kit designed for a 185 mm drum on a car equipped with 160 mm shoes, the handbrake will not engage whatsoever. For newer G-generation BMWs equipped with electromechanical parking brake (EPB) calipers, the VIN establishes whether a dedicated secondary parking caliper or an integrated EPB rear caliper design is needed to preserve factory handbrake operation and eliminate dash warnings.
- Confirm whether your BMW uses mechanical drum-in-hat handbrake shoes or an electronic parking brake motor.
- For internal shoe setups, use your VIN to confirm if your rear wheel bearing housing houses a 160 mm or 185 mm drum.
- Check that replacement two-piece rotor hats incorporate the proper internal friction ring material for shoe engagement.
- Ensure wiring harness connectors for electronic parking brake systems match the replacement caliper actuators.
Calculate Hydraulic Master Cylinder Volume and Brake Bias
Upgrading to multi-piston calipers alters the total hydraulic piston surface area in your braking system. Your BMW's master cylinder bore diameter and ABS/DSC pump valving are calibrated specifically for the factory caliper piston displacement. If a big brake kit increases total piston area excessively, the brake pedal will feel long, soft, and spongy, while an undersized piston area creates an overly grabby pedal with poor modulation.
Decoding your VIN reveals whether your car has the standard master cylinder or the larger bore unit installed on factory M Sport cars. On vehicles like the F30, BMW official retrofit instructions require updating the DSC control module programming (coding the vehicle order for sport brakes) to rebalance electronic brake-force distribution. Verifying these specs ensures that caliper upgrades maintain factory-level pedal firmness and ABS response.
- Compare the total piston surface area of the new kit against your VIN-derived factory caliper piston displacement.
- Determine if your chassis requires factory DSC coding updates to account for larger front-to-rear fluid volume shifts.
- Ensure brake line thread pitches match your factory hardlines, which are predominantly M10x1.0 bubble flares on modern BMWs.
- Verify that brake fluid displacement stays within the working stroke limits of your stock tandem master cylinder.
Check Wheel Barrel Profile and Spoke Clearance Templates
While your VIN verifies vehicle-side fitment, wheel-side fitment requires physical measurement against a clearance template. Even if a 380 mm or 400 mm brake kit fits behind an 18-inch or 19-inch wheel diameter in theory, the inner barrel drop center and the back face of the wheel spokes often foul large multi-piston calipers. Factory BMW wheels vary significantly in spoke concavity and interior drop-center clearances.
Suppliers provide printable 1:1 scale wheel fitment profiles representing the caliper profile and rotor diameter. You must position this cross-section inside your wheel to confirm radial barrel clearance (ideally 3 mm or more) and axial spoke clearance (at least 2 mm to 3 mm). On performance builds where carbon ceramic rotors are installed, inadequate wheel clearance risks trapped road grit scoring the rotor face or grooving the inner wheel barrel.
- Download and print the 1:1 scale fitment template from the brake manufacturer, ensuring correct printer scaling.
- Mount the cut-out template flat against your wheel's hub mounting pad.
- Measure the gap between the caliper profile and the back of the wheel spokes to ensure a minimum of 2.0 mm clearance.
- Confirm at least 3.0 mm of radial clearance between the outer caliper bridge and the inner wheel barrel.
- Account for wheel balancing weights, which can contact the top edge of large 6-piston calipers if positioned over the caliper sweep.
Choose Rotor Metallurgy and Caliper Configurations
With mechanical fitment established, selecting between two-piece cast iron rotors and carbon ceramic discs depends on your usage profile and vehicle weight. For standard street and moderate track use, two-piece floating iron discs with aluminum hats provide robust thermal mass. If unsprung weight reduction and fade resistance under extreme temperatures are paramount, carbon ceramic rotors offer substantial performance gains.
When purchasing replacement carbon ceramic discs or complete kits, rotor pricing scales directly with diameter and application. For reference, ForzaCCB published direct-fit carbon ceramic rotor pricing offers matched pairs across three primary envelopes: Street Spec up to 370 mm at $1,950 per pair ($975 per rotor before shipping), GT Spec covering 380 mm to 405 mm at $2,100 per pair ($1,050 per rotor), and Track Spec spanning 410 mm to 440 mm at $2,350 per pair ($1,175 per rotor). Estimated DDP delivery allowances typically run around $150 per rotor for major markets depending on country taxes and hardware. Matching these disc dimensions via your VIN ensures proper pad sweep, pad compound selection, and bracket alignment.
- Determine your performance duty cycle: aggressive canyon driving, endurance track days, or high-performance street commuting.
- Select rotor diameter that fills your wheel barrel while maintaining necessary thermal capacity for your car's curb weight.
- Verify that pad compounds match the chosen disc material, as iron-compound pads will destroy carbon ceramic friction surfaces.
- Confirm that caliper finish, fluid seals, and dust boots correspond with your intended climate and track maintenance schedule.
Practical Checklist
- Pull your complete 17-digit BMW VIN and decode all braking-related factory option codes.
- Verify the exact casting part numbers and bolt spacing of your front steering knuckles.
- Measure or confirm the internal handbrake drum diameter (160 mm vs 185 mm) or EPB motor compatibility.
- Check that the replacement caliper piston volume aligns with your factory master cylinder displacement.
- Print a 1:1 wheel fitment template and check spoke and barrel clearance inside your specific wheels.
- Verify that custom rotor hats match your chassis hub pilot diameter and lug bolt pattern.
- Ensure replacement brake lines feature matching chassis-side M10x1.0 fittings and bracket locations.
- Confirm software coding requirements to update your BMW DSC module for sport brake operation if required.
Recommended Next Step
Need to confirm big brake kit fitment for your BMW? Contact ForzaCCB with your 17-digit VIN to verify exact knuckle geometry, rotor offsets, and custom iron or carbon ceramic configurations.
Browse the Big Brake Kit catalogFAQ
Why do big brake kit suppliers need a VIN before confirming fitment for a car?
Suppliers request your VIN because automotive manufacturers frequently revise suspension knuckles, hub offsets, master cylinder bore sizes, and parking brake configurations within the same model generation. Decoding the VIN exposes the exact factory option codes and production date, eliminating guesswork regarding caliper mounting spacing and rotor hat depth.
Does the vehicle VIN need to be provided to confirm brake kit fitment?
While general platform dimensions are widely cataloged, providing your VIN is the only fail-safe method to verify factory-installed packages such as M Sport or CCB brakes. This ensures that the supplied radial brackets, rotor hat offsets, and hydraulic line threads bolt onto your car without custom fabrication or alignment shims.
How do you choose the correct ceramic brake pads, discs and calipers for a specific car by VIN?
Using the VIN, a supplier cross-references your vehicle's gross axle weights, factory rotor sizing, and caliper mounting orientation. This data dictates the appropriate caliper piston sizing to maintain hydraulic balance, the correct rotor diameter for thermal capacity, and pad compounds tailored specifically to your rotor metallurgy.
How can I confirm a carbon ceramic brake kit fits my car before ordering overseas?
Before placing an international order, provide your full VIN to verify knuckle bolt patterns and request a certified engineering drawing detailing rotor hat offset, center bore, and caliper bracket height. Additionally, download a 1:1 wheel profile template from the supplier to test-fit inside your wheel barrel and confirm spoke clearance manually.
What should I know before buying a high-performance big brake kit for an exotic or sports car?
Prior to purchasing an aftermarket big brake kit, verify that your factory master cylinder can displace enough fluid for the new caliper pistons without excessive pedal travel. You must also confirm parking brake integration, check wheel barrel and spoke clearance, and ensure the disc hat offset centers the rotor perfectly within the caliper channel.
