Owners of Aston Martin models equipped with Carbon Ceramic Material (CCM) braking systems sometimes consider transitioning to steel rotors to reduce long-term maintenance costs. However, moving from large-diameter CCMs to smaller, single-piece steel rotors introduces significant technical hurdles and performance shifts. This article analyzes the fitment requirements and the impact on vehicle dynamics.
Contents
- Key Context
- Structured Analysis
- Practical Checklist
- CTA
- FAQ
- Source Notes
- Professional Disclaimer
Key Context

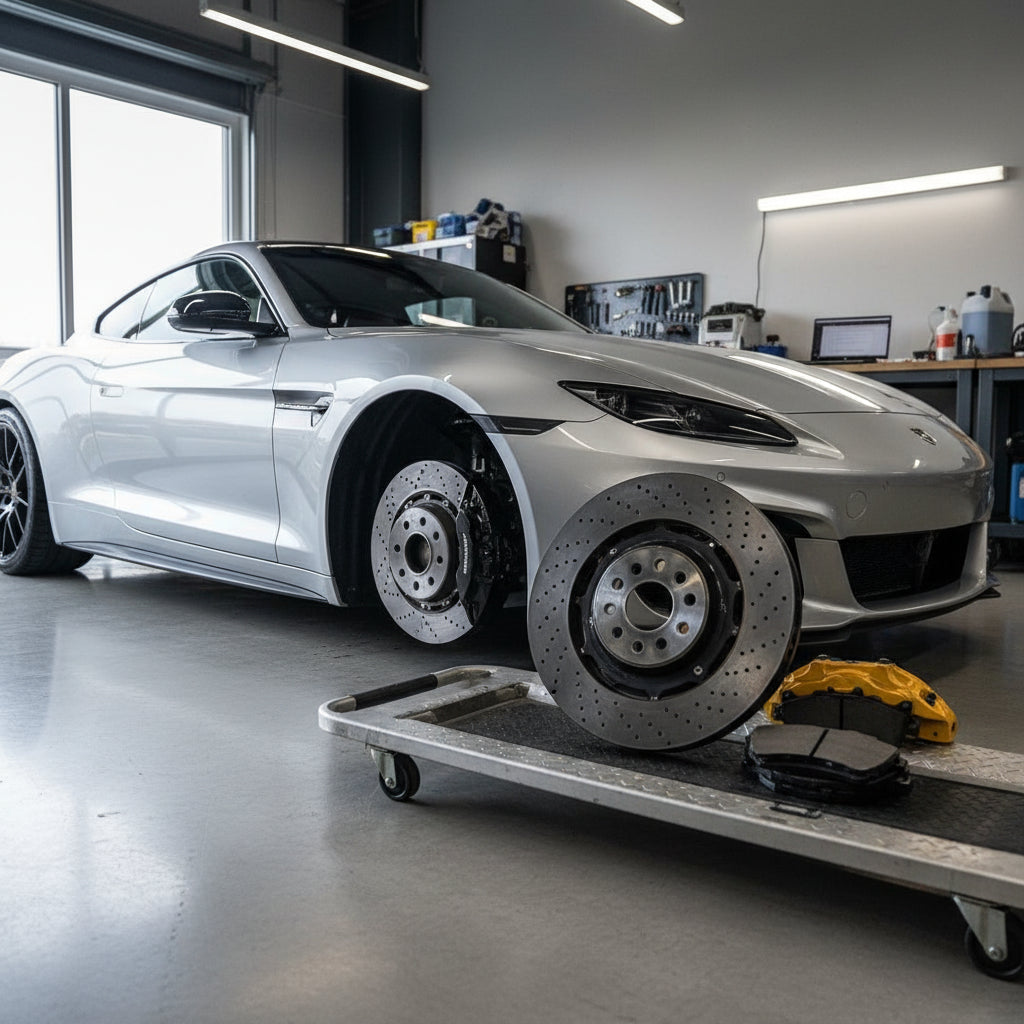

Aston Martin utilizes advanced CCM systems on models like the Vantage, DBS, and Vanquish to provide fade-free stopping power and significant weight savings. These systems are designed as a holistic package, where the caliper size, piston pressure, and ABS programming are tuned specifically for the friction coefficient and diameter of the carbon discs. Replacing these with smaller, single-piece steel rotors is not a direct "bolt-on" procedure and involves altering the fundamental braking physics of the vehicle.
Structured Analysis
1. Caliper Mounting and Radial Fitment
The primary obstacle to installing smaller rotors is the fixed position of the OEM calipers. Aston Martin CCM calipers are mounted to accommodate specific rotor diameters (often 398mm or larger). If a smaller steel rotor is used, the caliper will sit too far out, causing the brake pads to overhang the edge of the rotor. To correct this, custom mounting brackets or different calipers are required, which can compromise the structural integrity of the brake assembly if not engineered to precise tolerances.
2. Unsprung Weight and Handling
A single-piece steel rotor is significantly heavier than a CCM disc of the same size; downsizing the rotor is often an attempt to mitigate some of this weight gain. Even with a smaller diameter, a single-piece steel rotor lacks the lightweight aluminum "hat" or bell found in two-piece designs. The increase in unsprung weight negatively impacts suspension response, steering feel, and the vehicle's ability to maintain tire contact over uneven surfaces.
3. Thermal Management and Fade Resistance
Carbon Ceramic Materials are designed to operate at extremely high temperatures without structural deformation. Smaller single-piece steel rotors have less surface area to dissipate heat and less thermal mass to soak up energy. Under spirited driving or track conditions, these smaller rotors are prone to overheating, which can lead to brake fade, fluid boiling, and rotor warping. Single-piece designs are also more susceptible to "coning" under high heat compared to floating two-piece rotors.
4. Brake Torque and Electronic Calibration
Brake torque is a product of the rotor radius and the clamping force. By reducing the rotor diameter, you inherently reduce the mechanical leverage of the braking system. This change can disrupt the factory-tuned ABS, Traction Control, and Electronic Brakeforce Distribution (EBD) settings. The vehicle may require significantly more pedal effort to achieve the same stopping distance, and the safety systems may not intervene as expected during emergency maneuvers.
Practical Checklist
- Diameter Verification: Measure the original CCM rotor diameter versus the proposed steel replacement to determine the required caliper offset.
- Caliper Compatibility: Ensure the brake pad sweep area of the existing caliper aligns with the narrower friction ring of a smaller steel rotor.
- Wheel Clearance: Confirm that the new caliper position (if moved inward) does not interfere with the wheel barrel or spokes.
- Thermal Capacity: Evaluate if the smaller steel mass can handle the kinetic energy of the vehicle's weight and top speed.
- Brake Line Reach: Check if moving the caliper requires longer or custom-routed stainless steel brake lines.
Recommended Next Step
Looking to plan the right brake package for Aston Martin Ccm? Browse our Aston Martin Collection to compare vehicle-specific carbon ceramic rotor and upgrade options.
FAQ
Can I use my original Aston Martin CCM calipers with smaller steel rotors?
Not without a custom bracket. The calipers are positioned for a specific radius; a smaller rotor would result in improper pad contact and dangerous overhang.
How much weight will I add by switching to steel?
Switching from CCM to steel typically adds 15–25 lbs per corner. Using a smaller single-piece rotor may reduce that gain slightly, but it will still be significantly heavier than the original carbon setup.
Will the brake pedal feel different after the swap?
Yes. Because steel has a different friction coefficient and a smaller diameter provides less leverage, the pedal will likely feel heavier and require more travel to achieve high deceleration.
Is a single-piece rotor better than a two-piece rotor?
For performance applications, no. Two-piece rotors allow for thermal expansion and use an aluminum hat to save weight. Single-piece rotors are generally a budget-oriented choice that sacrifices performance.
