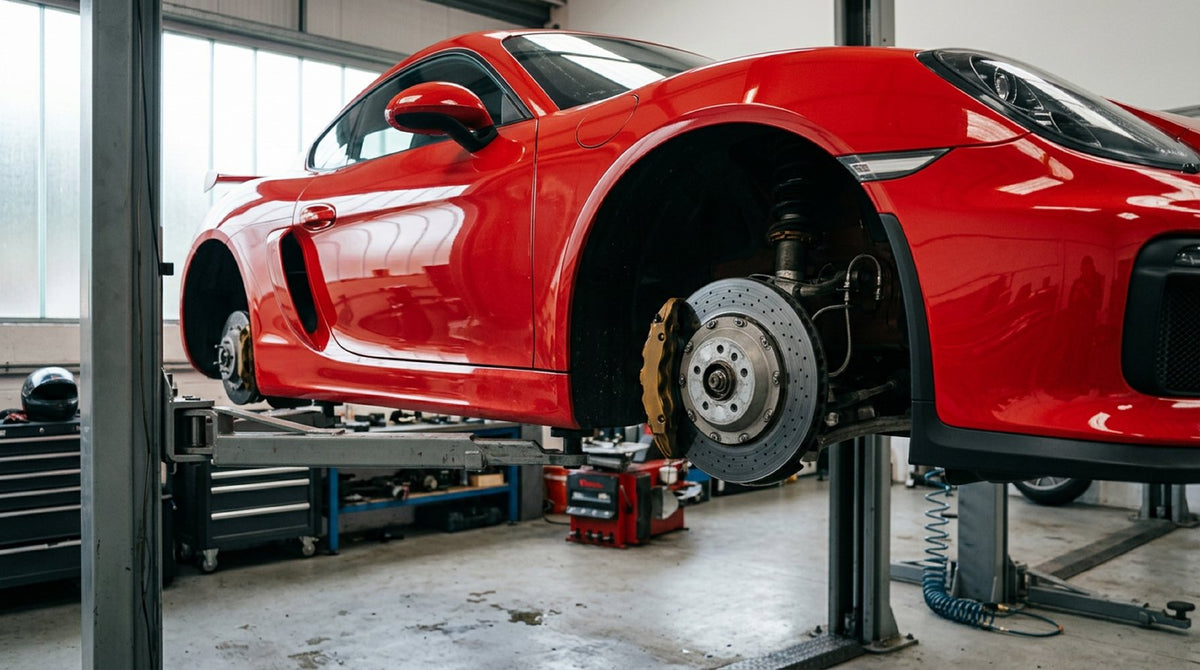

Yes, carbon ceramic rotors fit a 2016 Porsche Cayman GT4 when stepping up to the largest factory-envelope sizes of 410 mm front and 390 mm rear. Installing these maximum disc diameters onto a GT4 originally equipped with standard 380 mm iron brakes requires caliper radial spacers, extended caliper bolts, and careful barrel clearance checks. Alternatively, owners can install 380 mm direct-replacement carbon ceramic discs that bolt into standard iron calipers without bracket modifications.
Contents
- 01Factory Brake Geometry: Standard Iron Versus PCCB Dimensions
- 02Caliper Spacing and Fastener Requirements for 410 mm and 390 mm Rotors
- 03Direct-Fit 380 mm Carbon Ceramic Alternatives
- 04Wheel Barrel Clearance: 20-Inch Factory Wheels vs. 19-Inch Motorsport Fitments
- 05Pad Compounds, Brake Bias, and Stability Management Integration
Key Context
The 981-generation 2016 Porsche Cayman GT4 left the factory with one of two distinct braking setups. The standard cast-iron brake system utilized 380 mm x 34 mm ventilated rotors up front clamped by six-piston monobloc aluminum calipers, paired with 380 mm x 30 mm rear rotors clamped by four-piston calipers. Buyers who selected the optional Porsche Ceramic Composite Brake (PCCB) package received enlarged 410 mm front and 390 mm rear discs with yellow calipers tailored for that broader disc radius.
Because the Cayman GT4 shares much of its front axle geometry and braking architecture with the 991.1 GT3, upgrading the iron-brake GT4 to the maximum 410 mm and 390 mm carbon ceramic dimensions is mechanically feasible. However, iron and PCCB calipers have distinct casting offsets, bolt lengths, and pad annular profiles that directly dictate what hardware is required to complete the conversion.
Deciding between 380 mm direct-fit carbon ceramic discs and the enlarged 410 mm front and 390 mm rear setup depends on wheel diameter choices, thermal demands, and track operating budgets. Understanding the physical mounting geometry prevents costly mistakes during installation.
Fitment and Engineering Analysis for Cayman GT4 Carbon Ceramic Upgrades
Factory Brake Geometry: Standard Iron Versus PCCB Dimensions
A baseline comparison of factory hardware is essential before purchasing aftermarket or OEM carbon discs. The standard 2016 Cayman GT4 iron setup uses equal 380 mm diameter rotors on both the front and rear axles. In contrast, the factory PCCB configuration steps up to a 410 mm front rotor and a 390 mm rear rotor, providing increased leverage and significantly greater thermal surface area.
The red cast-iron calipers and yellow PCCB calipers share identical piston sizing—30/32/34 mm staggered pistons in the front six-piston units and 28/30 mm pistons in the rear four-piston units. This shared hydraulic architecture means that hydraulic line pressure and the master cylinder piston stroke remain balanced whether running 380 mm or the larger 410/390 mm rotor combination.
The physical caliper castings, however, are not identical. The PCCB front caliper body features extended mounting radial legs to clear the 410 mm rotor radius, while the rear caliper uses slightly different internal radius machining. Understanding which caliper body is installed on your chassis dictates whether spacer blocks are required.
- Base iron package: 380 mm front x 34 mm thickness; 380 mm rear x 30 mm thickness.
- Factory PCCB option: 410 mm front x 36 mm thickness; 390 mm rear x 32 mm thickness.
- Hydraulic matching: identical caliper piston diameters across both iron and PCCB brake setups.
Caliper Spacing and Fastener Requirements for 410 mm and 390 mm Rotors
If your 2016 Cayman GT4 was manufactured with factory red iron calipers, fitting maximum-diameter 410 mm front and 390 mm rear carbon ceramic rotors requires caliper radial spacer kits. To increase the front rotor radius from 190 mm (380 mm diameter) to 205 mm (410 mm diameter), precisely machined 15 mm caliper spacers must sit between the wheel carrier upright and the caliper mounting lugs.
At the rear axle, accommodating a 390 mm rotor on factory 380 mm caliper uprights requires a 5 mm radial spacer block. In both positions, standard Porsche caliper bolts must be replaced with high-tensile, extended fasteners to maintain sufficient thread engagement within the aluminum uprights. Reusing factory-length bolts with radial spacers risks catastrophic thread stripping under high braking torque.
Technicians must verify pad sweep contact across the rotor friction surface. The pad annular height must match the carbon ceramic rotor friction face without hanging over the outer edge or dragging against the inner rotor hat mounting bobbins.
- Front spacing: 15 mm radial caliper spacers with 15 mm longer high-grade caliper bolts.
- Rear spacing: 5 mm radial caliper spacers with extended mounting hardware.
- Thread engagement: minimum 1.5 times the bolt diameter engaged into the hub carrier.
Direct-Fit 380 mm Carbon Ceramic Alternatives
Upgrading to carbon ceramic rotors does not strictly require increasing your rotor diameter to 410 mm and 390 mm. Direct-fit 380 mm front and rear carbon ceramic discs are engineered to bolt directly into standard red GT4 calipers without spacers, brackets, or extended hardware. This creates a true plug-and-play installation that preserves original caliper geometry.
Direct-fit 380 mm carbon ceramic rotors shed approximately 35 to 45 pounds of total unsprung, rotational mass across all four corners compared to the heavy iron units. Because carbon ceramic material handles extreme heat without thermal fading, a 380 mm carbon rotor offers higher continuous track stamina than an iron rotor of identical diameter.
For owners comparing replacement components, direct-fit carbon ceramic offerings such as ForzaCCB GT Spec rotors (380–405 mm) are priced at $2,100 per matched pair before freight, representing roughly $1,050 per rotor. Compared to dealership OEM replacement quotes that frequently exceed several thousand dollars per corner, aftermarket continuous-fiber or modular carbon ceramic options deliver accessible unsprung weight reduction.
- Direct mounting: zero spacers, factory bolt lengths, zero clearance modifications.
- Weight advantage: roughly 18 to 22 pounds saved per axle over cast iron discs.
- Versatility: preserves compatibility with smaller diameter motorsport wheels.
Wheel Barrel Clearance: 20-Inch Factory Wheels vs. 19-Inch Motorsport Fitments
The standard 2016 Cayman GT4 arrived on 20-inch alloy wheels (8.5x20 front, 11x20 rear). These factory 20-inch wheels provide ample radial barrel clearance for 410 mm front and 390 mm rear carbon ceramic rotors, leaving generous airflow around the calipers to prevent heat soak into wheel balancing weights.
Complications arise when owners downsize to 19-inch wheels to gain access to wider, cheaper track tire compounds. While 380 mm front and rear brake setups fit comfortably inside most quality 19-inch motorsport barrels, fitting 410 mm front carbon ceramic rotors under 19-inch wheels requires specific motorsport wheel designs with dropped inner drop centers and optimized barrel contours.
Before selecting the 410 mm front rotor configuration, measure the inner drop-well profile and spoke backspacing of your target wheels. A minimum clearance of 3 mm between the caliper outer bridge and the inner wheel barrel is mandatory to prevent debris scoring and thermal expansion interference during track use.
- Factory 20-inch wheels: direct fit with generous radial clearance for 410 mm and 390 mm discs.
- Aftermarket 19-inch wheels: require precise barrel drop-well profiles to clear 410 mm front calipers.
- Operational clearance: at least 3 mm minimum clearance needed to avoid rim damage from road gravel.
Pad Compounds, Brake Bias, and Stability Management Integration
Installing carbon ceramic rotors demands strict adherence to dedicated carbon ceramic friction pads. Running standard iron-spec brake pads on carbon ceramic discs will ruin the carbon friction layer within a few hard stops. Owners must install carbon-ceramic-compatible friction compounds that establish a micro-transfer layer on the disc face.
Upgrading to 410 mm front and 390 mm rear rotors alters mechanical brake torque leverage slightly compared to the baseline 380/380 mm iron setup. Because front diameter grows by 7.9 percent while rear diameter grows by only 2.6 percent, the system moves slightly forward in mechanical brake bias. The Cayman GT4 factory Porsche Stability Management (PSM) and electronic brake-force distribution (EBD) adapt well to this subtle shift.
Suppliers like ForzaCCB supply carbon ceramic rotor friction materials tailored to preserve correct pad sweep depth and operating friction coefficients. If your GT4 operates primarily on circuit days, selecting a compound that maintains consistent friction between 200°C and 700°C prevents resin oxidation and maintains predictable pedal firmness.
- Pad material: never use cast-iron pads; specify ceramic-specific track or street friction materials.
- Torque distribution: minor forward bias migration handled transparently by factory ABS/EBD.
- Thermal bed-in: execute standard transfer-layer bedding cycles before aggressive track sessions.
Practical Checklist
- Identify whether your 2016 Cayman GT4 currently has red iron calipers or factory yellow PCCB calipers.
- Decide whether to install 380 mm direct-fit carbon ceramic rotors or step up to enlarged 410 mm and 390 mm discs.
- Source certified 15 mm front and 5 mm rear radial caliper spacer blocks if stepping up on iron calipers.
- Replace caliper mounting bolts with high-tensile fasteners lengthened by the exact spacer thickness.
- Verify inside barrel diameter of your track wheels if running 19-inch sizes with 410 mm front discs.
- Install exclusively carbon-ceramic-formulated brake pads to preserve the rotor surface matrices.
- Inspect the inner rotor hat mounting bells and parking brake drum lining for proper rear hub seating.
Recommended Next Step
If you are evaluating direct-fit 380 mm or enlarged 410/390 mm carbon ceramic rotor upgrades for your 2016 Porsche Cayman GT4, contact ForzaCCB for tailored fitment measurements and spec options.
Browse the Porsche CollectionFAQ
Can I fit 410 mm front carbon ceramic rotors under 19-inch track wheels on a Cayman GT4?
It depends strictly on the wheel barrel design. While standard 380 mm rotors clear nearly all 19-inch motorsport wheels, 410 mm discs with six-piston calipers require specific motorsport-profile barrels with maximized radial clearance. Measure caliper radial overhang before mounting tires.
Do 2016 Cayman GT4 iron calipers have the same piston sizes as PCCB calipers?
Yes, both red iron and yellow PCCB factory calipers use matching 30/32/34 mm front pistons and 28/30 mm rear pistons. The internal hydraulic pressure and pedal displacement are identical between the two brake variants.
Is it possible to replace 380 mm iron rotors with 380 mm carbon ceramic discs without spacers?
Yes, direct-replacement 380 mm carbon ceramic rotors mount straight to factory iron wheel carriers using OEM calipers and standard bolts. This approach saves approximately 40 pounds of unsprung mass without requiring any mounting modifications.
How much does it cost to upgrade a Cayman GT4 to carbon ceramic rotors?
Aftermarket direct-fit options like ForzaCCB GT Spec rotors (380–405 mm) list at $2,100 per pair, while Track Spec 410 mm rotors list at $2,350 per pair, plus shipping. Complete four-corner conversions typically cost a fraction of factory dealer replacement parts.
