A Jeep Big Brake Kit does not automatically require a separate rear caliper to retain the electronic parking brake, but your specific setup depends entirely on the kit's caliper design. If the aftermarket caliper incorporates an integrated electric motor, it directly replaces the factory unit on a single mount. However, if the kit uses a conventional multi-piston hydraulic motorsport caliper, retaining the factory electronic parking brake requires a secondary standalone parking caliper mounted on a dual-caliper bracket.
Contents
- 01Integrated EPB Calipers vs. Dual-Caliper Mounting Brackets
- 02Rotor Diameter, Annulus Thickness, and Caliper Bracket Geometry
- 03Hydraulic Piston Area, Master Cylinder Sizing, and ABS/ESC Dynamics
- 04Wheel Barrel, Spoke Clearance, and Brake Line Routing
- 05Pad Friction Profiles: Iron BBK vs. Carbon Ceramic Big Brake Kits
Key Context
Jeep braking architectures diverge significantly across generations and platforms. Traditional body-on-frame models like the Wrangler JK, JL, and Gladiator JT historically utilize a mechanical cable-actuated parking brake, either operating a drum-in-hat shoe assembly inside the rear rotor hat or pulling a mechanical caliper lever. In contrast, modern unibody Jeep models—such as the Cherokee KL, Renegade, and late-model Grand Cherokee platforms—use a computerized motor-on-caliper Electronic Parking Brake (EPB) that clamps the rear service pads via an electric servo motor.
When upgrading to a Jeep Big Brake Kit, retaining EPB functionality is essential for passing safety inspections and preserving automated stability features. The vehicle stability control, hill-start assist, and emergency braking logic communicate directly with the rear brake actuators via the CAN-bus network. Severing or bypassing this connection triggers instrument cluster warnings and disables dynamic driver-assist systems.
Aftermarket engineering resolves this challenge through two distinct paths: specialized multi-piston calipers that house internal EPB stepper motors, or dedicated dual-caliper mounting brackets. Understanding how these mechanical configurations interact with rotor offset, hydraulic piston area, and chassis electronics prevents expensive fitment mistakes during installation.

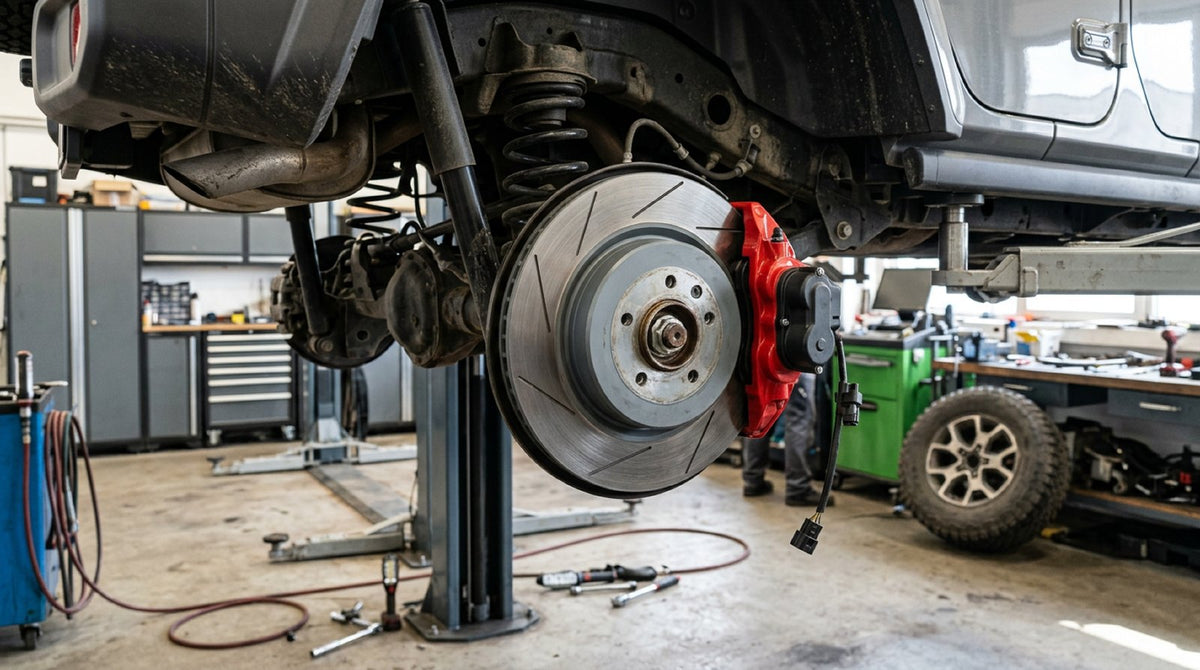

Engineering Considerations for Rear EPB Big Brake Kits on Jeep Vehicles
Integrated EPB Calipers vs. Dual-Caliper Mounting Brackets
The primary design distinction in any rear Big Brake Kit engineered for an EPB-equipped vehicle centers on mechanical packaging. An integrated EPB caliper packages a high-torque electric servo directly onto the back of a multi-piston monobloc body. This design allows a direct bolt-on installation using a single radial bracket, reusing the factory wiring harness and keeping unsprung mass to a minimum without cluttering the wheel hub.
The secondary alternative is a dual-caliper bracket system, which mounts a dedicated hydraulic caliper for foot-pedal braking alongside an independent mechanical or motorized parking brake caliper. Dual-caliper solutions are common when adapting pure motorsport calipers that lack internal parking brake mechanisms. While effective, dual brackets add hardware complexity, require precise radial alignment over the rotor friction ring, and demand significantly more clearance inside the wheel barrel.
- Integrated motor calipers maintain factory plug-and-play wiring harness connectors without requiring external splice modules.
- Dual-caliper brackets require separate mounting ears and often demand larger inner wheel barrel clearance to prevent caliper-to-rim contact.
- Service mode must always be engaged electronically via the vehicle interface or diagnostic tool before retracting integrated EPB pistons.
Rotor Diameter, Annulus Thickness, and Caliper Bracket Geometry
Increasing rear braking leverage requires scaling both rotor diameter and thermal mass while maintaining precise caliper bracket geometry. Factory solid rear discs—such as the 328 x 12 mm solid rotors found on standard trims or the 278 mm solid discs on compact platforms—shed heat poorly under sustained towing or off-road descents. Upgrading to a 350 mm to 380 mm vented rotor substantially increases heat absorption and torque arm leverage.
The caliper bracket must position the pads accurately over the rotor annulus without radial overhang or pad-to-hat interference. Because the rotor hat houses the hub face and wheel bolt circle, changing rotor thickness from a 12 mm solid disc to a 28 mm or 32 mm directional-vane rotor changes the axial spacing. CNC-machined billet aluminum brackets must account for this offset while providing the structural rigidity needed to withstand dynamic clamping loads.
- Rotor thickness must match the caliper jaw width to ensure proper pad clearance and prevent premature piston over-extension.
- Radial caliper brackets must maintain exact center alignment over the rotor to prevent uneven pad taper and piston binding.
- Directional cooling vanes must be oriented correctly according to wheel rotation to evacuate heat through the rotor circumference.
Hydraulic Piston Area, Master Cylinder Sizing, and ABS/ESC Dynamics
Modifying rear caliper hardware directly affects total hydraulic displacement and front-to-rear brake bias. Factory floating single-piston rear calipers—typically utilizing a 45 mm to 48 mm piston—displace a specific volume of fluid during pedal application. If a rear Big Brake Kit introduces an oversized four-piston caliper without matched total piston area, the brake pedal will feel excessively long and mushy.
Furthermore, Jeep anti-lock braking systems (ABS) and electronic stability control (ESC) rely on factory-calibrated pressure-rise curves. An uncontrolled shift in rear hydraulic torque can cause the rear axle to lock prematurely under hard deceleration, triggering aggressive ABS intervention or destabilizing the chassis. Caliper piston sizing must be balanced against the front axle configuration to keep brake bias within the electronic control thresholds.
- Total piston surface area across all pistons in the new caliper must match the hydraulic capacity of the factory master cylinder.
- Unbalanced rear piston expansion causes excessive brake pedal travel and reduces high-speed threshold modulation.
- Factory electronic brake-force distribution (EBD) cannot indefinitely compensate for gross mechanical piston mismatches.
Wheel Barrel, Spoke Clearance, and Brake Line Routing
Wheel fitment is frequently the tightest constraint when installing upgraded rear calipers alongside EPB actuators. Standard 17-inch or 18-inch wheels that clear factory single-piston floating calipers often strike the bulky body of a multi-piston caliper or the secondary EPB motor casing. A dual-caliper setup compounds this issue because two separate caliper bodies must fit within the inner circumference of the barrel.
Clearance must be measured across three axes: radial barrel clearance, axial spoke clearance, and suspension arm proximity during full articulation. Additionally, stainless steel braided brake lines must be routed with sufficient slack to prevent binding or chafing during suspension cycling. The factory EPB wiring loom must also be secured to prevent snagging on control arms or aftermarket sway bars.
- Maintain a minimum clearance of 3 mm between the caliper body and the wheel spokes, and 5 mm to the inner barrel.
- Check parking brake motor harness length and tension at full droop and full bump suspension extremes.
- Ensure aftermarket stainless steel hydraulic lines utilize correct banjo fittings and chassis locating tabs.
Pad Friction Profiles: Iron BBK vs. Carbon Ceramic Big Brake Kits
Choosing between cast iron and carbon ceramic materials dictates operating temperatures, unsprung weight, and maintenance cycles. Traditional iron Big Brake Kits represent an accessible, robust solution with widely available friction materials suitable for heavy trail use and severe off-road debris exposure. However, large iron discs add substantial rotating mass to an already heavy driveline assembly.
By contrast, carbon ceramic Big Brake Kits cut rotating unsprung weight by up to 50 percent while virtually eliminating brake dust and rotor wear during highway and towing operations. Suppliers like ForzaCCB manufacture custom carbon ceramic rotor conversions and matched calipers that integrate seamlessly with modern vehicle hubs. When deploying carbon ceramic discs, specialized friction pads formulated for composite matrices must be used, and rotors must be shielded from coarse gravel or rock gouging during extreme off-highway driving.
- Iron rotors provide economical replacement costs and high resistance to physical rock damage in extreme terrain.
- Carbon ceramic rotors provide dramatic unsprung weight reduction, sharper steering response, and exceptionally long road service lives.
- Carbon ceramic applications require dedicated pad compounds to maintain low operating noise and prevent surface matrix abrasion.
Practical Checklist
- Identify whether your specific Jeep uses an integrated motor-on-caliper EPB or a mechanical cable system before ordering parts.
- Verify wheel clearance with a template before ordering your front or rear Big Brake Kit.
- Confirm that the replacement caliper incorporates an EPB motor mount or provides a validated dual-caliper bracket.
- Calculate the total hydraulic piston surface area to ensure compatibility with your factory master cylinder bore.
- Engage electronic brake service mode using a diagnostic tool prior to disconnecting or retracting any EPB actuators.
- Inspect wheel spoke and barrel clearances along with suspension clearance at full articulation and steering lock.
- Select friction pads formulated specifically for your rotor material, distinguishing strictly between cast iron and carbon ceramic matrices.
Recommended Next Step
Evaluating brake upgrades for your build? Contact ForzaCCB to discuss tailored carbon ceramic rotor options, exact caliper clearances, and direct-fit hardware engineered for your vehicle.
Browse the Big Brake Kit catalogFAQ
Can I disconnect the electronic parking brake motor if my new rear caliper does not support it?
Disconnecting the motor will immediately trigger a permanent parking brake warning light, disable hill-start assist, and potentially throw the vehicle stability system into a fault mode. If your rear caliper lacks an EPB mechanism, you must install a secondary parking caliper to retain the factory actuator.
How do I retract the rear caliper piston when installing a Jeep Big Brake Kit with EPB?
You must place the brake system into service mode using the in-cabin infotainment menu or an OBD-II diagnostic scan tool. Attempting to force the piston back with a mechanical press tool without retracting the internal motor gear will destroy the caliper mechanism.
Does a dual-caliper rear brake setup cause uneven brake wear?
No, because the secondary parking brake caliper is strictly static and only applies pressure when the vehicle is parked. Dynamic hydraulic braking is handled exclusively by the primary service caliper, ensuring standard, even pad wear across the rotor.
Will a rear Big Brake Kit negatively alter my Jeep's front-to-rear brake balance?
It can if the piston surface area is improperly calculated. A properly engineered kit matches the caliper piston sizing and rotor diameter to the factory master cylinder and front axle output, ensuring the electronic brake-force distribution system operates within normal limits.
