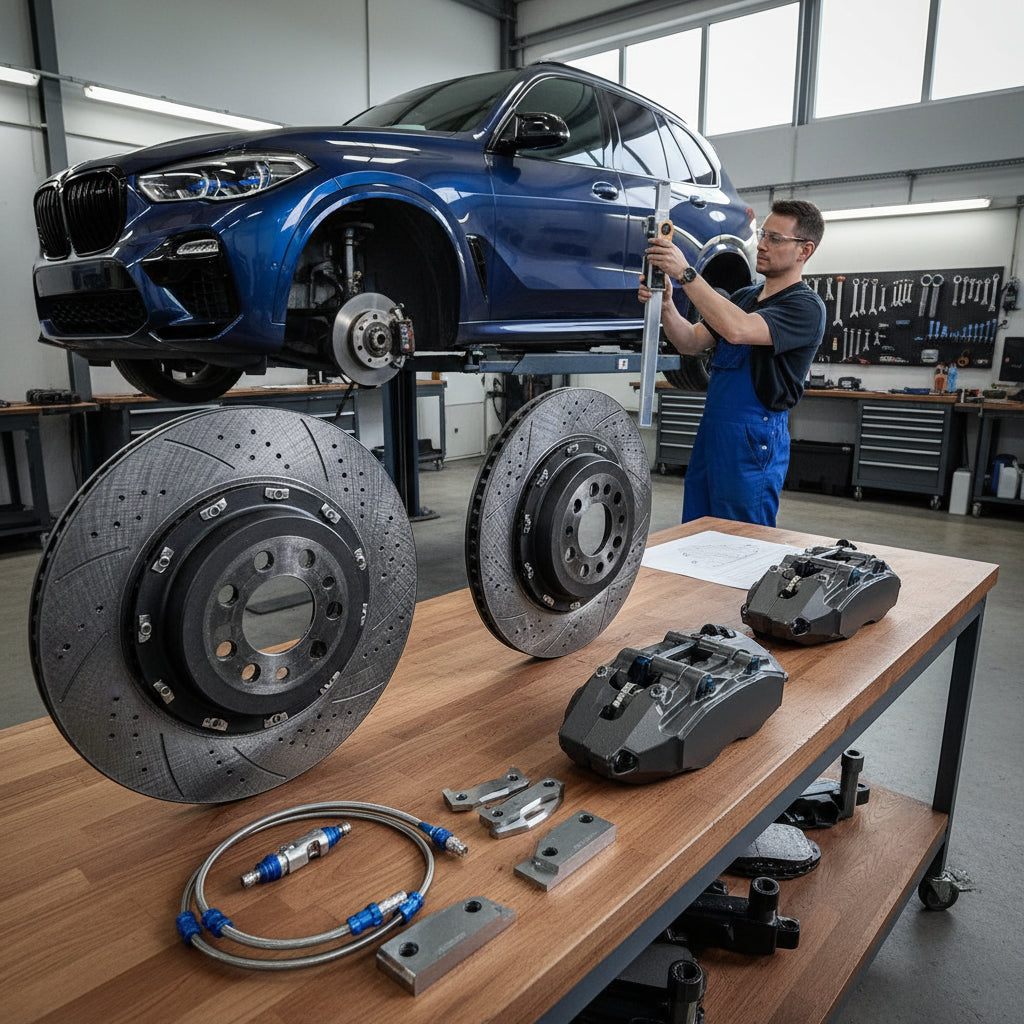

The BMW X5M (F95) and X6M (F96) are heavy-duty performance SUVs that benefit significantly from increased thermal capacity during spirited driving. Retrofitting a Porsche Big Brake Kit, specifically the Akebono 10-piston system with 440mm carbon-ceramic rotors, represents the pinnacle of SUV braking performance. This adaptation requires precise engineering to bridge the gap between Porsche’s hardware and BMW’s chassis architecture.
Contents
- Key Context
- Structured Analysis
- Practical Checklist
- CTA
- FAQ
- Source Notes
- Professional Disclaimer
Key Context
The Porsche Cayenne (9Y0) utilizes a massive 10-piston Akebono front caliper paired with 440mm Carbon Ceramic Brake (CCB) rotors. This system is designed to halt high-inertia vehicles with zero fade. Because the BMW X5M F95 uses a 5x112 bolt pattern and specific radial mounting points, this retrofit is not a "bolt-on" procedure. It requires custom-machined adapter brackets and bespoke rotor hats (bells) to align the massive 440mm friction surface with the BMW hub and caliper positioning.
Structured Analysis
1. Caliper Mounting and Radial Displacement
The Akebono 10-piston caliper is a radial-mount design. To fit this to the BMW X5M F95/F96, a custom CNC-machined bracket is required. This bracket must account for the offset difference between the BMW steering knuckle and the Porsche caliper mounting lugs. Because the 440mm rotor is significantly larger than the stock BMW 395mm or 400mm units, the bracket must displace the caliper further outward. Structural integrity is paramount here, as 10-piston calipers generate immense clamping force.
2. Rotor PCD and Center Bore Adaptation
Porsche rotors typically utilize a 5x130 bolt pattern, whereas the BMW F95/F96 uses a 5x112 pattern. To use Porsche 440mm CCB rings, the original Porsche aluminum hats must be removed. They must be replaced with custom-engineered bells that feature the BMW 5x112 bolt pattern and the correct 66.6mm center bore. This conversion also allows for the adjustment of the rotor's "stack height" to ensure the friction ring sits perfectly centered within the Akebono caliper.
3. Wheel Clearance and Barrel Requirements
A Porsche Big Brake Kit of this magnitude dictates wheel choice. The 440mm rotor combined with the high-profile 10-piston Akebono caliper generally requires a minimum of 21-inch wheels, though many 21-inch designs still lack the internal barrel clearance. 22-inch wheels are typically recommended to ensure a safe gap between the caliper and the wheel weights. Spacers may also be required to clear the "face" of the caliper, as it is considerably wider than the factory BMW M compound calipers.
4. Brake Bias and Hydraulic Matching
The X5M master cylinder is designed for 6-piston front calipers. Moving to a 10-piston Akebono system increases the total piston area, which can lead to a longer brake pedal stroke. While the F95's brake-by-wire system can often compensate for this, it is vital to monitor the brake bias. Carbon ceramic rotors have different friction coefficients than iron, so the rear brakes should ideally be upgraded to a matching CCB material to maintain the vehicle's electronic stability control (DSC) balance.
5. Cost Planning and Value Comparison
For those sourcing replacement 440mm carbon ceramic rotors for this retrofit, direct-fit options provide a controlled cost path. Based on ForzaCCB Track Spec pricing, 440mm matched pairs are valued at $2,350 ($1,175 per rotor). After an estimated $150 per rotor for shipping and duties to major markets, the landed cost is approximately $1,325 per rotor. This is often significantly more accessible than purchasing the Porsche-branded retail replacements through a dealership network, which can exceed $5,000 per front pair.
Practical Checklist
- Verify wheel barrel clearance: Ensure 22-inch wheels or high-clearance 21-inch wheels are used.
- Source custom brackets: High-grade 7075-T6 aluminum or steel adapters for the Akebono calipers.
- Fabricate custom rotor hats: Convert 440mm rings from 5x130 to 5x112 BMW fitment.
- Brake line extension: Check if the factory BMW lines reach the new Porsche caliper inlet location; custom braided lines are often necessary.
- Coding: Use BMW-specific software (like ESYS or ISTA) to update the vehicle VO (Vehicle Order) for Carbon Ceramic Brakes to adjust ABS/DSC logic.
- Pad Selection: Ensure the use of specialized CCB brake pads compatible with Akebono 10-piston calipers.
Recommended Next Step
Looking to plan the right brake package for owners comparing BMW and Porsche brake setups? Browse our Big Brake Kit catalog to compare vehicle-specific rotor, caliper, and upgrade options.
FAQ
Can I use the Porsche pads with this retrofit?
Yes, if you are using the Akebono 10-piston calipers, you must use the pads designed for those specific calipers. However, ensure the pad compound is specifically rated for carbon ceramic rotors, as iron-specific pads will destroy the CCB surface quickly.
Will the 440mm rotor fit under my stock 21-inch BMW wheels?
It is highly dependent on the wheel's inner barrel shape. Some OEM 21-inch BMW wheels may fit, but the clearance is extremely tight (often less than 3mm). 22-inch wheels provide a safer margin for debris and thermal expansion.
Do I need to upgrade the rear brakes too?
While not strictly required for the car to stop, it is highly recommended. Mixing a massive 10-piston 440mm front CCB setup with a stock rear iron setup can create a significant brake bias shift and may interfere with the ABS calibration under heavy track use.
Is the BMW X5M master cylinder powerful enough?
The F95 X5M uses an integrated braking system that manages pressure electronically. In most cases, it can handle the increased volume of the 10-piston calipers, though the pedal feel may change slightly compared to the stock 6-piston setup.
