The BMW M8 (F92) is a pinnacle of grand touring performance, often equipped with the optional M Carbon Ceramic Brake (CCB) system. While these brakes offer incredible fade resistance and reduced unsprung weight, many owners report a high-pitched squealing sound during daily driving. This noise is rarely a sign of mechanical failure but is instead a byproduct of the system's specialized material properties and thermal requirements.
Contents
- Key Context
- Structured Analysis
- Practical Checklist
- CTA
- FAQ
- Source Notes
- Professional Disclaimer
Key Context

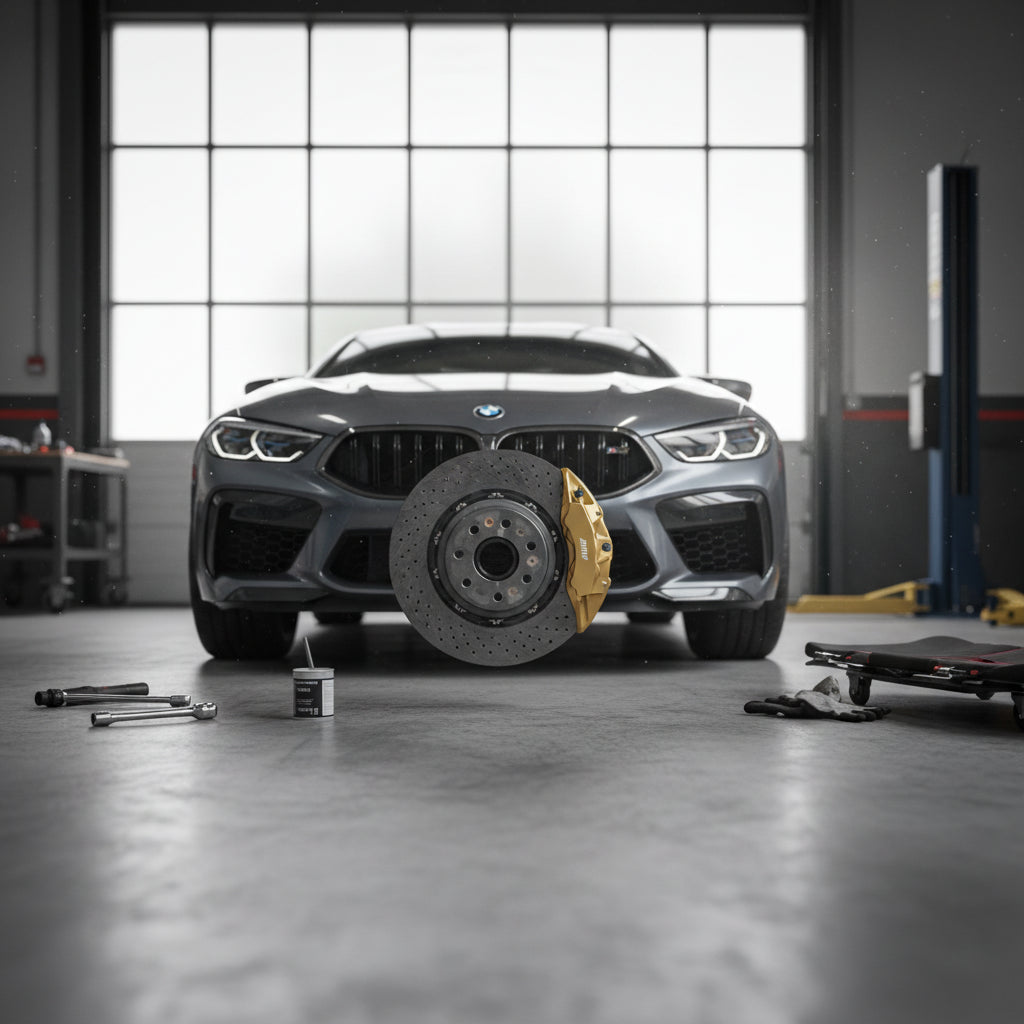

The BMW M8 (F92) utilizes a high-performance braking system where the carbon ceramic rotors are paired with specific high-friction pad compounds. These systems are visually distinguished by their signature gold-painted calipers. Unlike traditional iron rotors, carbon ceramic discs are designed to operate optimally at significantly higher temperatures than those typically reached during city driving or commuting.
In the F92 chassis, the brake ducting and cooling logic are optimized for track-level heat dissipation. When these components remain cold, the friction interface changes, leading to the vibrations that the human ear perceives as a squeal.
Structured Analysis
1. Operating Temperature and Friction Coefficients
The M Carbon Ceramic Brakes on the M8 require a specific thermal window to operate silently. At low temperatures, the friction coefficient between the pad and the ceramic rotor surface is inconsistent. This causes "stick-slip" vibrations. Because the F92 is a heavy, powerful vehicle, the pad compounds are aggressive; when light pressure is applied at low speeds, the pads do not "bite" fully, resulting in high-frequency resonance.
2. Glazing and Pad Transfer Layer
For quiet operation, a thin layer of friction material from the brake pads must be evenly transferred onto the carbon ceramic rotor. If the M8 is driven gently for extended periods, this transfer layer can wear away or become "glazed." Glazing occurs when the pads are polished smooth by light use rather than being used forcefully enough to renew the surface. This smooth, hard surface is a primary culprit for low-speed squeak.
3. Environmental Contamination and Debris
The cross-drilled holes in the M8's ceramic rotors can occasionally trap fine road grit or brake dust. Due to the hardness of the ceramic material, even small particles trapped between the pad and rotor can generate significant noise. Furthermore, moisture or humidity can cause a temporary change in the surface tension of the rotor, leading to "morning squeal" until the rotors are dried through friction.
4. Frequency Resonance in the F92 Chassis
Every braking system has a natural resonant frequency. BMW engineers use shim dampers and specific caliper mounting torques to minimize this on the F92. However, because the M8 features a very stiff suspension setup and large 20-inch or 21-inch wheels, these components can act as a loudspeaker, amplifying the vibrations naturally produced by the carbon ceramic interface.
Practical Checklist
If your BMW M8 (F92) brakes are squeaking, follow these steps to diagnose and potentially resolve the noise:
- Visual Inspection: Check the gold calipers and rotors for any visible debris or large stones trapped in the heat shields or cooling ducts.
- Temperature Cycle: Perform several firm (but safe) decelerations from 60 mph to 20 mph in a controlled environment to bring the rotors up to temperature.
- Re-Bedding: If glazing is suspected, follow a bedding-in procedure to re-establish the pad transfer layer on the rotor surface.
- Pressure Washing: Direct water through the wheel spokes into the rotor vanes and caliper bridge to flush out accumulated brake dust.
- Avoid Chemical Contaminants: Ensure that tire shine or aggressive wheel cleaners are not sitting on the rotor surface, as these can alter the friction coefficient.
- Verify Wear Sensors: Ensure the electronic wear sensors are not making physical contact with the rotor prematurely due to a loose clip.
Recommended Next Step
Looking to plan the right brake package for BMW M8? Browse our BMW Collection to compare vehicle-specific carbon ceramic rotor and upgrade options.
FAQ
Is the squeaking on my M8 a sign that the rotors are worn out?
Usually, no. Carbon ceramic rotors on the BMW M8 are measured by weight and surface density rather than thickness. Squeaking is typically a result of temperature or glazing, not the end of the rotor's service life.
Can I use different brake pads to stop the noise?
There are aftermarket "street" pads available for the F92 M8, but caution is advised. Changing to a softer compound may reduce noise but can also negatively affect the longevity of the expensive carbon ceramic rotors.
Why does the noise stop after I wash the car or drive in the rain?
Moisture can temporarily lubricate the interface, but the squeak often returns once the rotors dry. If the noise disappears after a thorough cleaning, it suggests that brake dust accumulation was the primary cause.
Does BMW cover brake squeak under warranty?
BMW generally considers brake noise on M models with Carbon Ceramic Brakes to be a "characteristic of the system" rather than a defect. However, if the noise is accompanied by vibration in the steering wheel, it should be inspected by a technician.
