Akebono 10‑Piston Front Ceramic Brake Calipers for Lamborghini Urus 440 mm Rotors - 4M0615105FA / 4M0615106FA

Name: Akebono 10‑Piston Front Ceramic Brake Calipers for Lamborghini Urus 440 mm Rotors - 4M0615105FA / 4M0615106FA
Brand: ForzaCCB.com
SKU: 8298310271115
Price: 2350.00 USD
Availability: InStock

Only 2 left

Price per pair

$2 350

~~$6 600~~ Sale $2 350

Global Tax-Free Checkout: No US Sales Tax and No EU VAT charged.

We Accept

Worldwide Door-to-Door Delivery

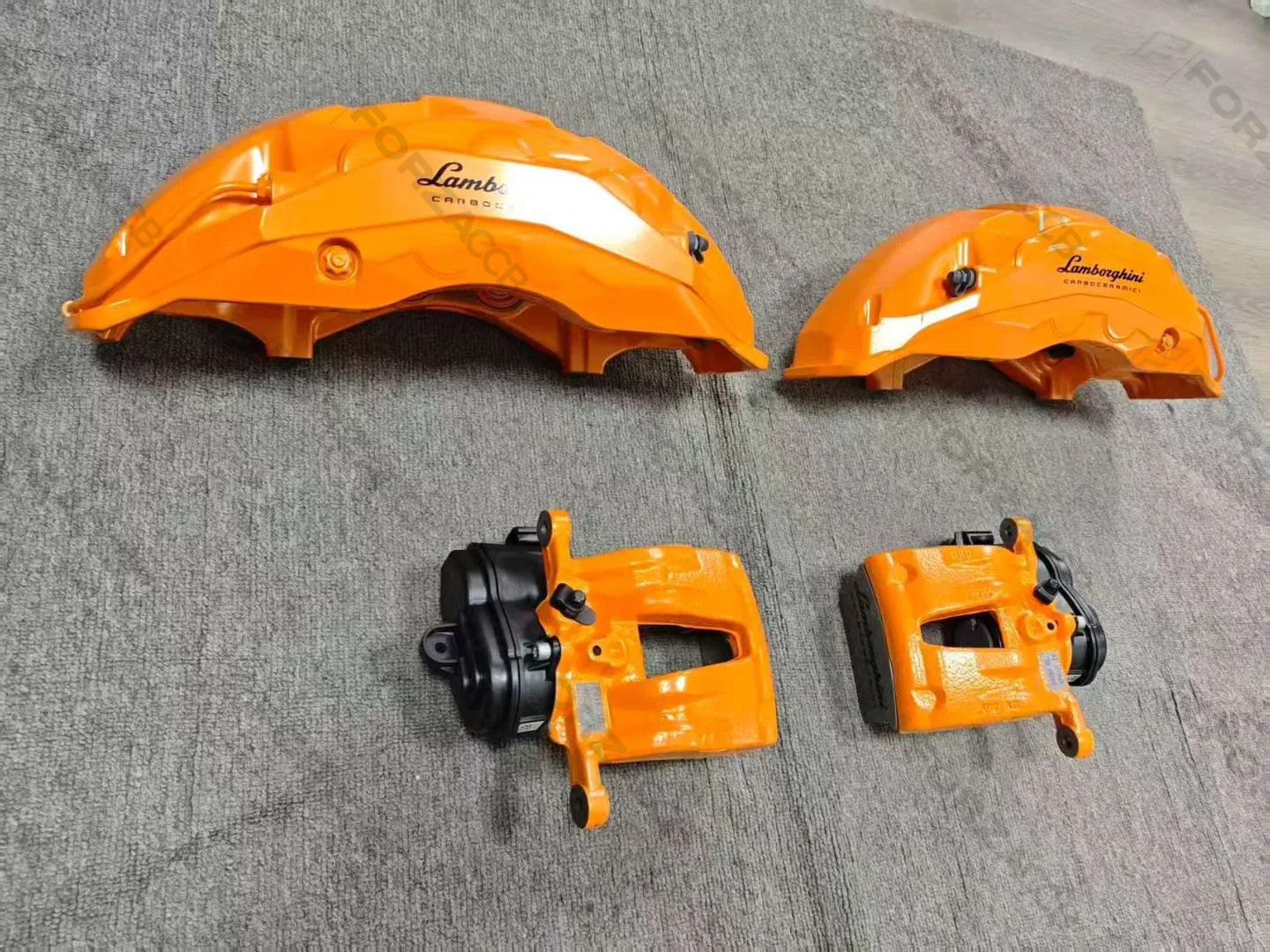

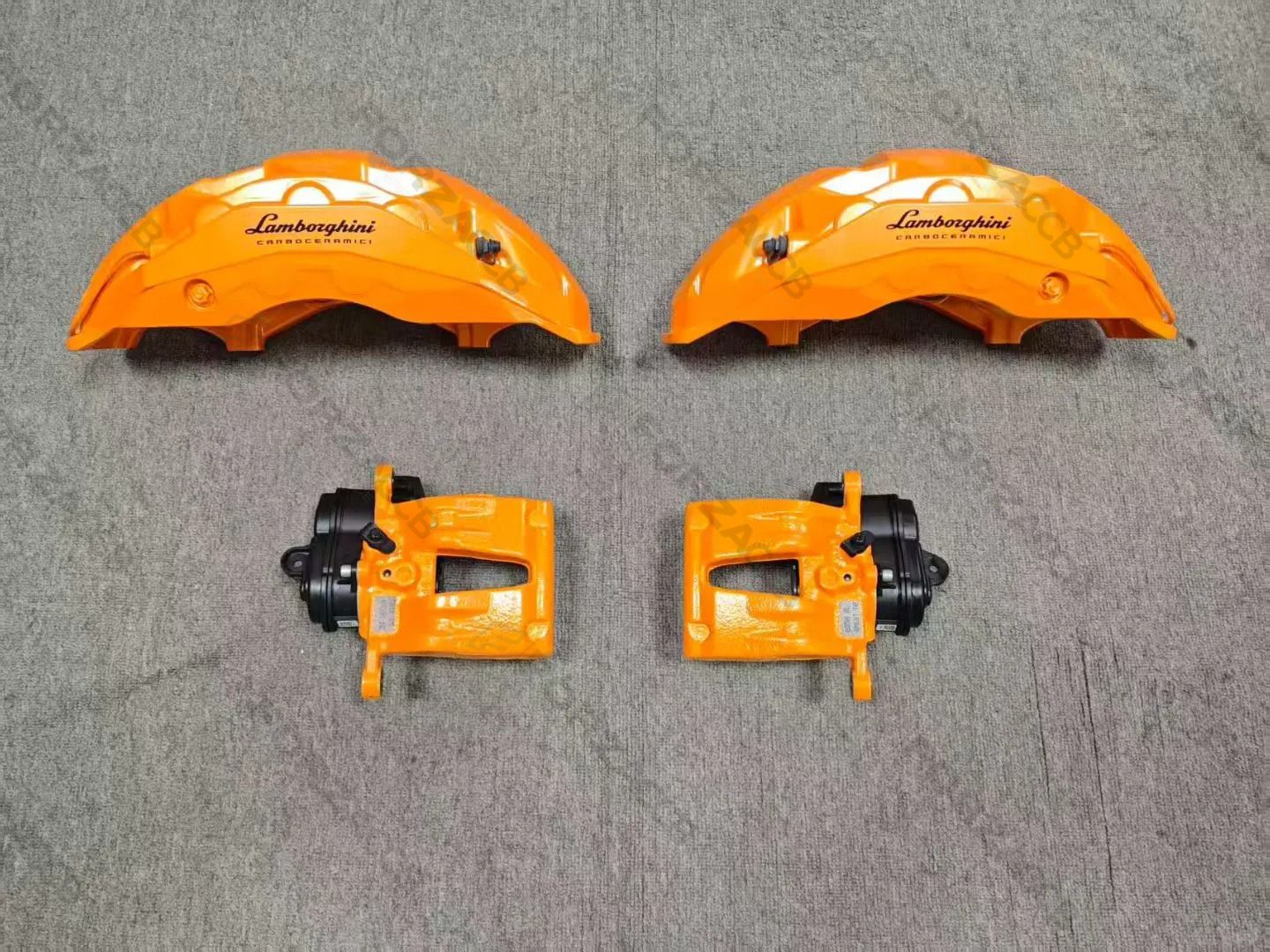

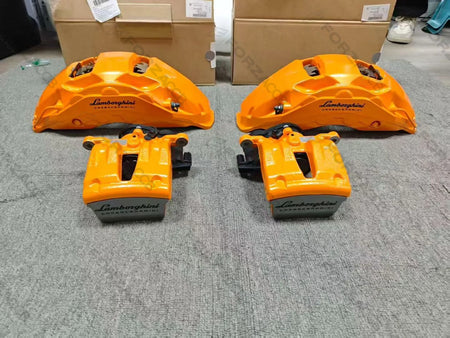

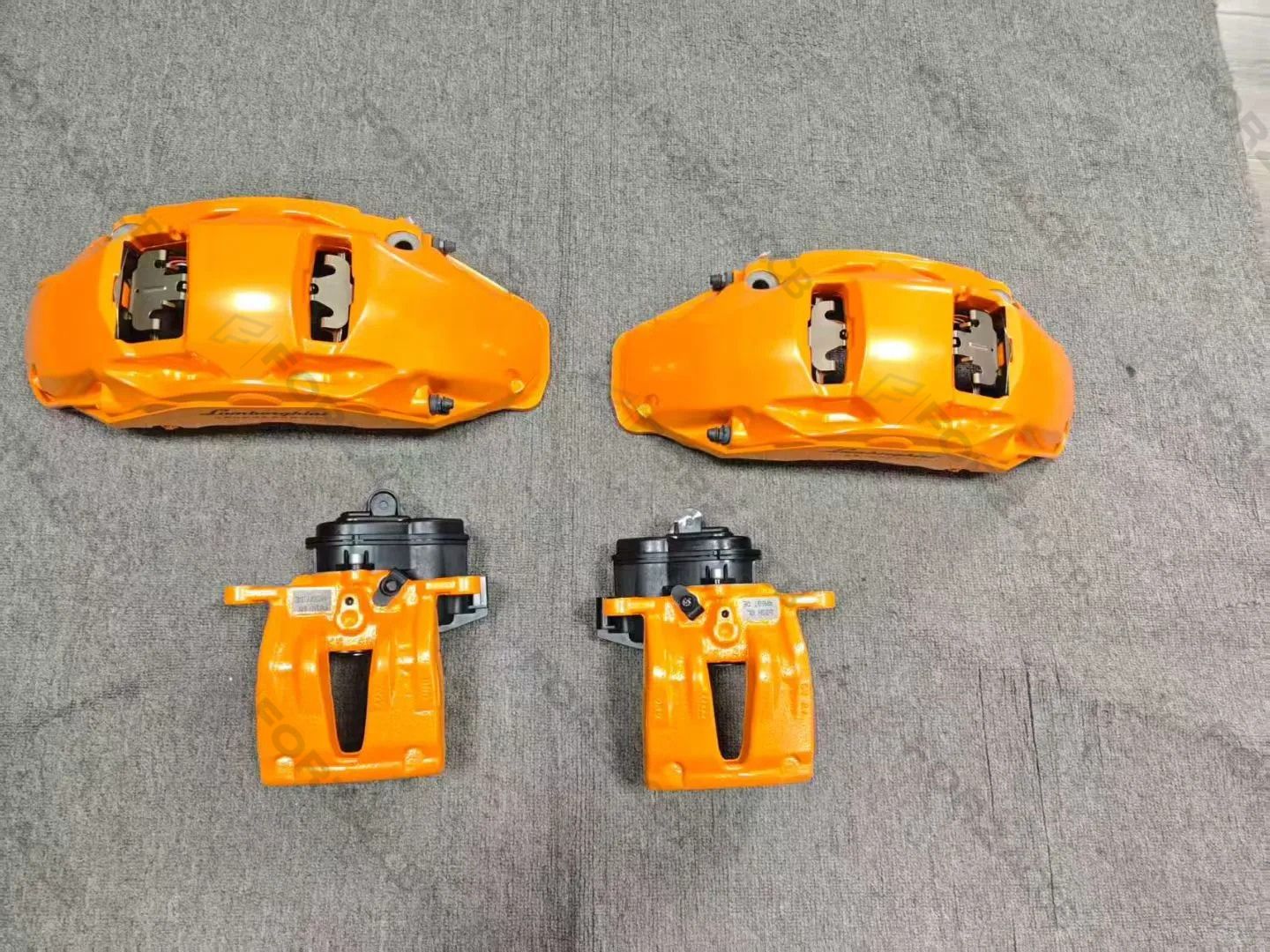

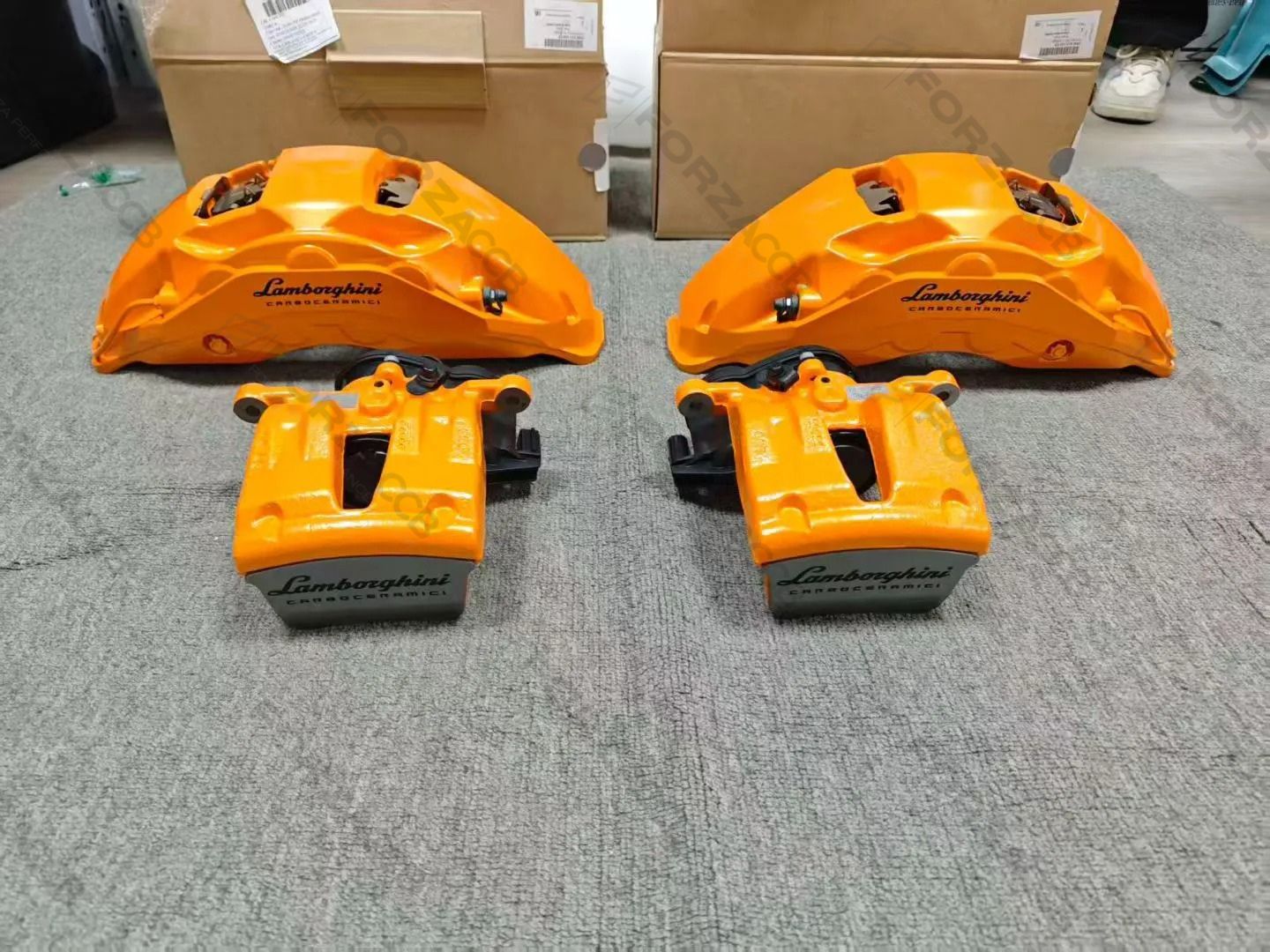

Upgrade or replace your braking system with Front 10-Piston Akebono Brake Calipers for Lamborghini Urus , designed specifically for the factory 440mm Carbon Ceramic Brake (CCB) package. Manufactured by Akebono for Lamborghini, these massive aluminum monoblock calipers deliver uncompromised stopping power for heavy, high-performance SUVs.

Whether you are replacing damaged factory calipers, changing the aesthetic color of your Urus, or building a custom Big Brake Kit (BBK) for a VAG MLB-Evo platform vehicle (Audi RSQ8, Porsche Cayenne, VW Touareg), these calipers provide the ultimate in braking performance and heat dissipation.

Product Details:

Piston Configuration: 10-Piston (Aluminum Monoblock)
Rotor Compatibility: Designed for 440x40mm Carbon Ceramic (CCB) Rotors
Position: Front Axle (Left & Right)
Color: Arancio Borealis

Fitment & Compatibility:

Lamborghini Urus (2018 - Present) - Direct Bolt-on for CCB-equipped models
Platform Retrofits: Can be adapted to Audi RSQ8, SQ8, Porsche Cayenne Turbo / Turbo GT, and Audi RS6 / RS7 (C8 generation) with correct mounting brackets and CCB rotor setups. Professional installation required for retrofits.

OEM Reference Part Numbers (For Comparison):

Front Left: 4M0615105FA / 4ML615105 (Varies by color suffix)
Front Right: 4M0615106FA / 4ML615106 (Varies by color suffix)
Akebono Casting/Internal Ref: 51-D2803-27110 / 51-D2803-17110

Note: Please verify your vehicle's VIN and current brake setup prior to ordering to ensure exact compatibility, especially if you are not installing these on a factory-equipped Lamborghini Urus.

CCB Rotor & Wheel Fitment Guide

Minimum wheel diameter guidance by rotor size. Always validate final fitment using a physical template and measured clearances.

Rotor Size (Diameter x Thickness)	Minimum Wheel Size	Technical Fitment Notes
310mm × 22mm	16-inch	Fits most 16-inch wheels. Installation on 15-inch wheels is possible only with specific low-profile callipers and is not generally recommended.
330mm × 28mm	17-inch	Standard entry-level size for performance brake upgrades. Fits comfortably within most 17-inch alloy wheels.
345mm - 356mm × 32mm	18-inch	Common mid-range size. Requires 18-inch wheels with standard barrel clearance.
380mm × 32/34mm	19-inch	The industry standard for Carbon Ceramic (CCB) and heavy-duty steel systems. Fits most 19-inch wheels; verify spoke clearance for wider callipers.
390mm × 36mm	19-inch (Tight Fit)	Fits 19-inch wheels with high-clearance barrels (flat inner bed). 20-inch wheels are recommended to ensure adequate air gap for cooling.
400mm - 405mm × 36/38mm	20-inch	Requires 20-inch wheels. Ensure the wheel barrel does not taper significantly near the mounting face.
410mm - 420mm × 38/40mm	21-inch	Standard fitment for 21-inch wheels. Can fit select 20-inch motorsport wheels with specialised flat barrel profiles (template verification required).
440mm × 40/42mm	21-inch (Minimum)	Extreme fitment. 21-inch is the absolute minimum requirement. 22-inch wheels are strongly advised for safe operating clearance and heat dissipation.

Essential Clearance Requirements

To ensure safety and prevent damage to components, please observe the following industry-standard tolerances when measuring your wheels:

Radial Clearance (Barrel): A minimum gap of 3mm is required between the top of the calliper and the inner wheel barrel to account for heat expansion and wheel deflection under load.
Axial Clearance (Spokes): Ensure a minimum of 3mm clearance between the face of the calliper and the rear of the wheel spokes.
Balance Weights: Ensure wheel balancing weights are positioned so they do not foul the brake calliper. We recommend placing weights outboard of the calliper zone for tighter fitments.

Important Fitment Disclaimer

The wheel sizes listed above represent minimum technical requirements based on standard barrel profiles. Due to significant variation in alloy wheel designs, particularly spoke curvature (X-factor) and inner barrel contours, meeting nominal diameter alone does not guarantee compatibility.

We strongly recommend verifying clearance instrumentally using printable fitment templates rather than relying only on visual estimates or stated wheel specifications. Please ensure at least 3mm clearance in all directions to account for thermal expansion and dynamic wheel deflection.
